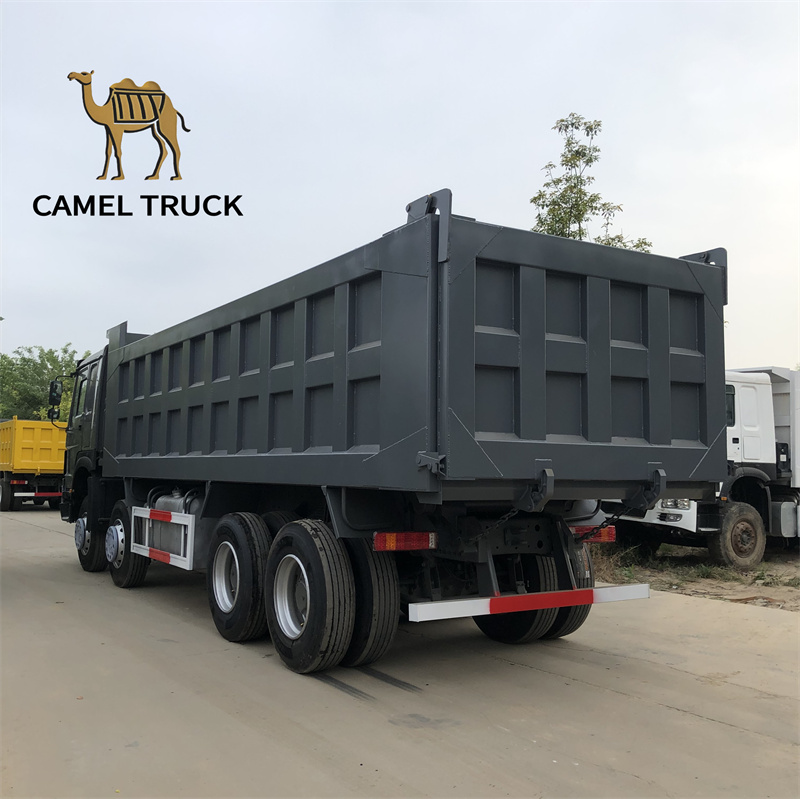

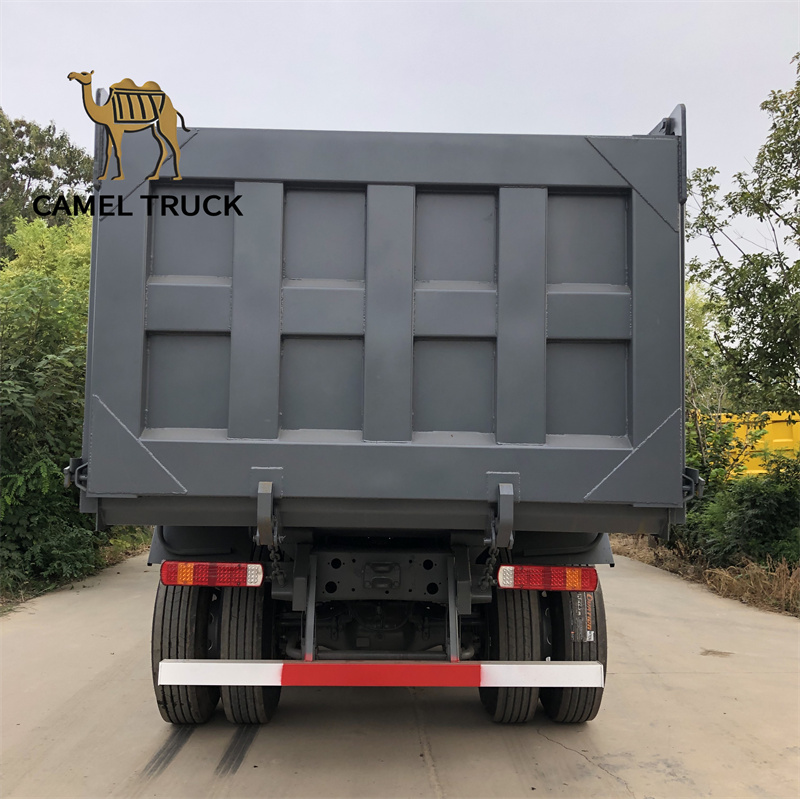

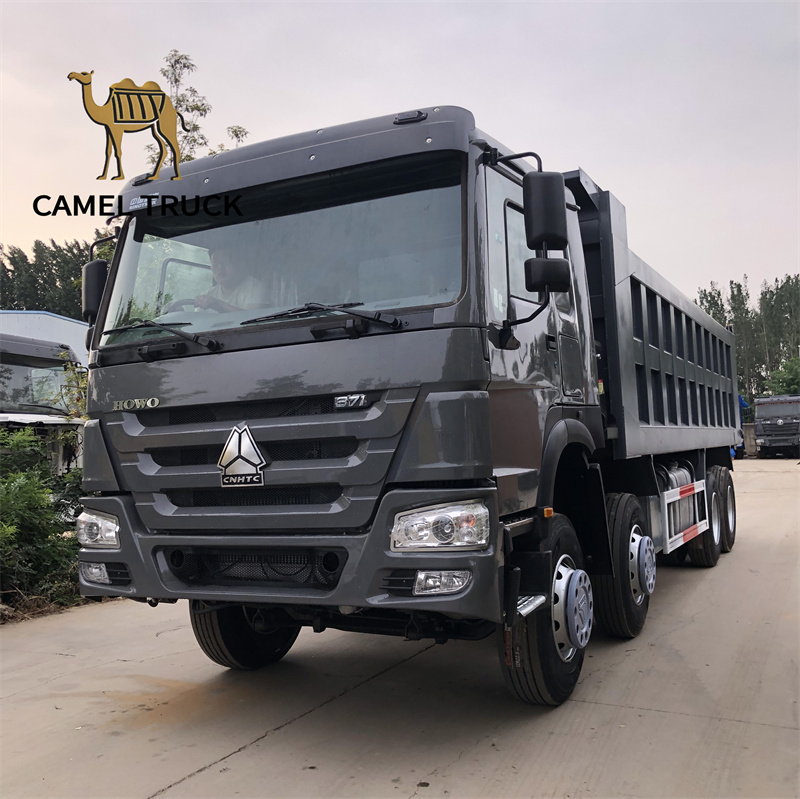

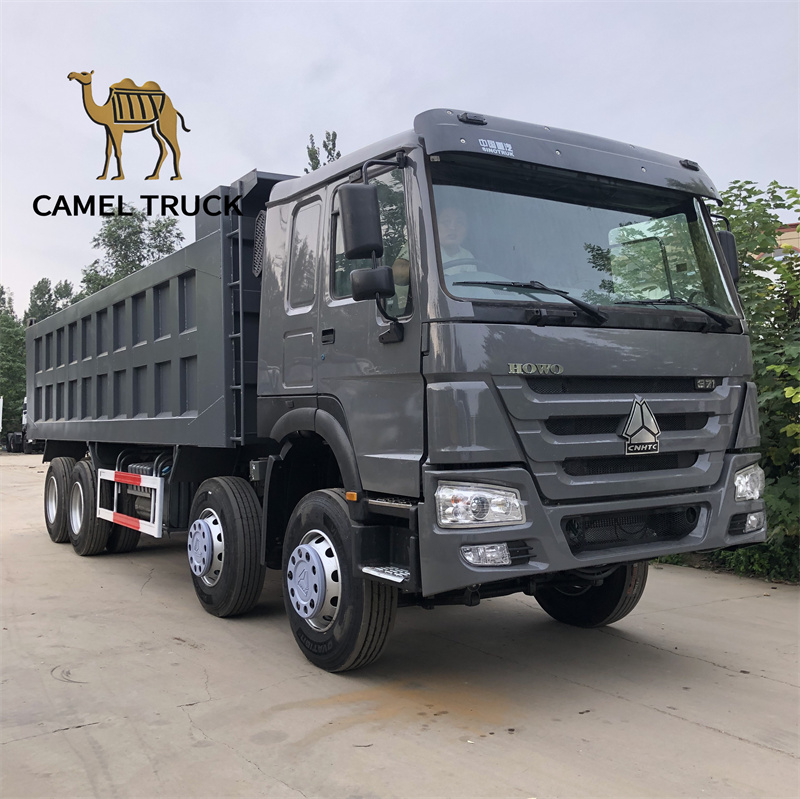

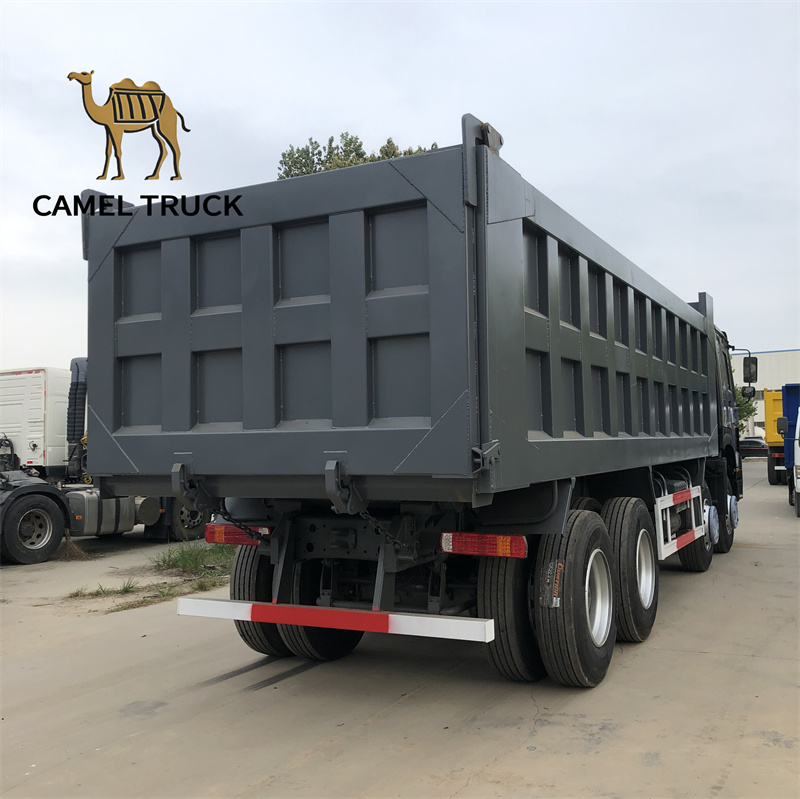

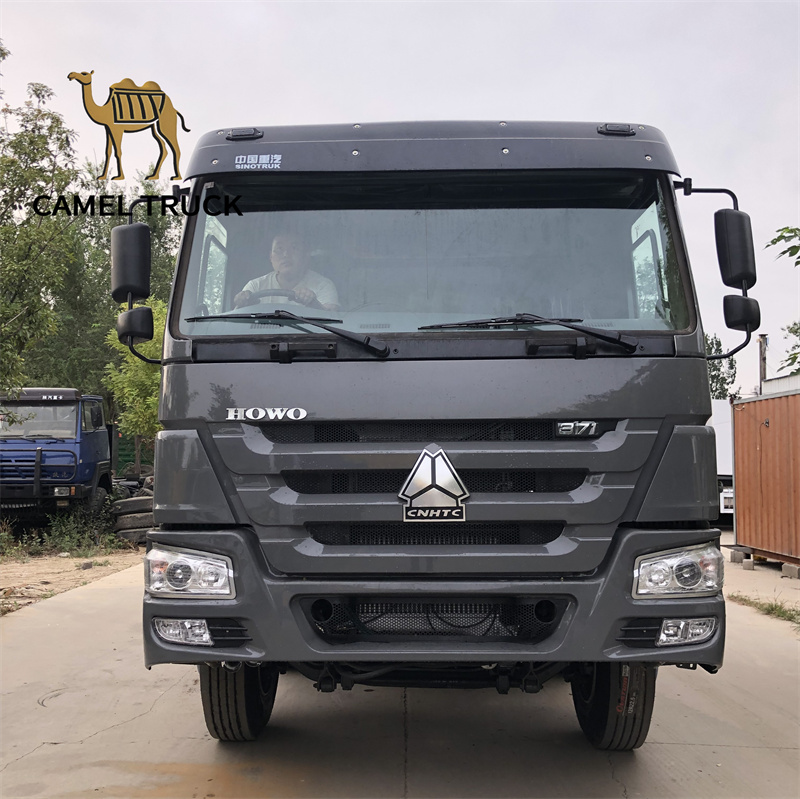

12 Wheels Howo Dump Truck
High Load Capacity – Built for heavy-duty transport and construction.
Powerful & Efficient Engine – Strong performance with reduced fuel consumption.
Reinforced Durability – Upgraded chassis and components for long-lasting reliability.
Comfortable Cabin – Ergonomic design for a better driving experience.
Affordable & Eco-Friendly – Save costs while reducing environmental impact.
Products Overview
The HOWO 8x4 dump truck is a strong and reliable workhorse! With 8 wheels and a big, tough body, it can carry heavy loads with ease. Powered by a mighty engine, it’s fast, fuel-efficient, and ready for any job. The sturdy chassis makes it super durable, while the spacious cabin keeps drivers comfy. Whether on construction sites or mining roads, this truck gets the job done! Strong, tough, and always ready to roll!
Parameter
Truck Brand | SINOTRUK-HOWO | |
Driving Style | LHD | |
Dimension (LxWxH)(unloaded)(mm) | 10500x2496x3450 | |
Cargo body size (L*W*H, mm)(mm) | 7600x2300x1500 | |
Cargo thickness (mm) | Bottom: 8mm, Side: 6mm | |
Lift type of Carriage | middle lifting | |
Approaching angle/Departure angle | 19/26 | |
Overhang (front/rear) (mm) | 1500/1739 | |
Wheel base (mm) | 3825+1350 | |
Max speed (km/h) | 75 | |
Maximum gradeability (%) | 40 | |
Minimum ground clearance (mm) | 314 | |
Minimum turning circle (m) | 20 | |
Curb weight (kg) | 15290 | |
Loading Weight (kg) | 50000 | |
Fuel tanker capacity (L) | 300 | |
Fuel consumption (L/km) | 23L/100 km | |
Clutch | Single-plate dry clutch 430mm | |
Engine Model (Steyr technology, made in China) | Fuel type | Diesel |
Horse Power, max(kw/rpm) | ||
Emission | EURO II | |
Model | WD615, water-cooled, four strokes, 6 cylinders in line with water cooling, directly injection | |
Bore | 126mm | |
Stroke | 130mm | |
Compression ratio | 29.8hp/l | |
Specific fuel consumption | 195g/kwh | |
Transmission | Model | HW19710, 10 forwards and 2 reverse |
Brake system | Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels | |
Auxiliary brake | Engine exhaust brake | |
Steering system | Model | ZF8118 hydraulic steering with power assistance |
Front axle | HF9 | |
Rear axle | HC16 | |
Tyre | 12.002 | |
Electrical system | Battery | 2X12V/165Ah |
Alternator | 28V-1500kw | |
Starter | 7.5Kw/24V | |

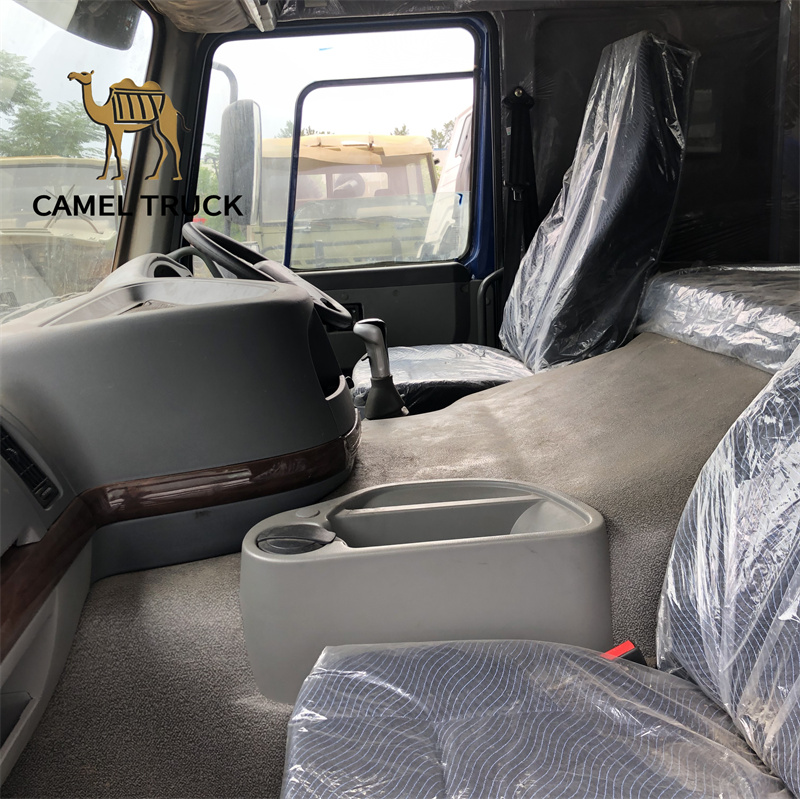

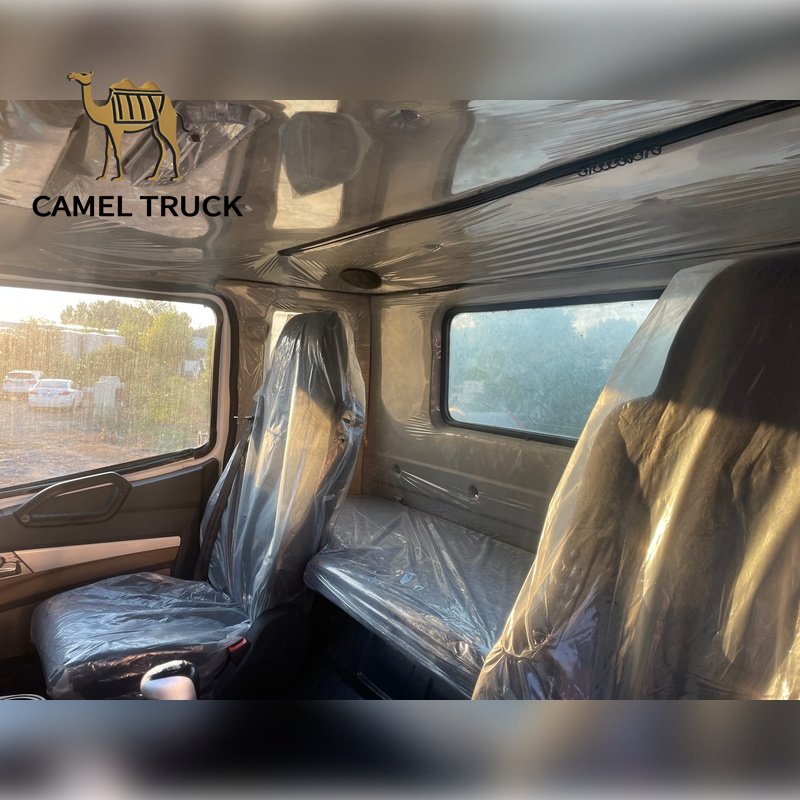

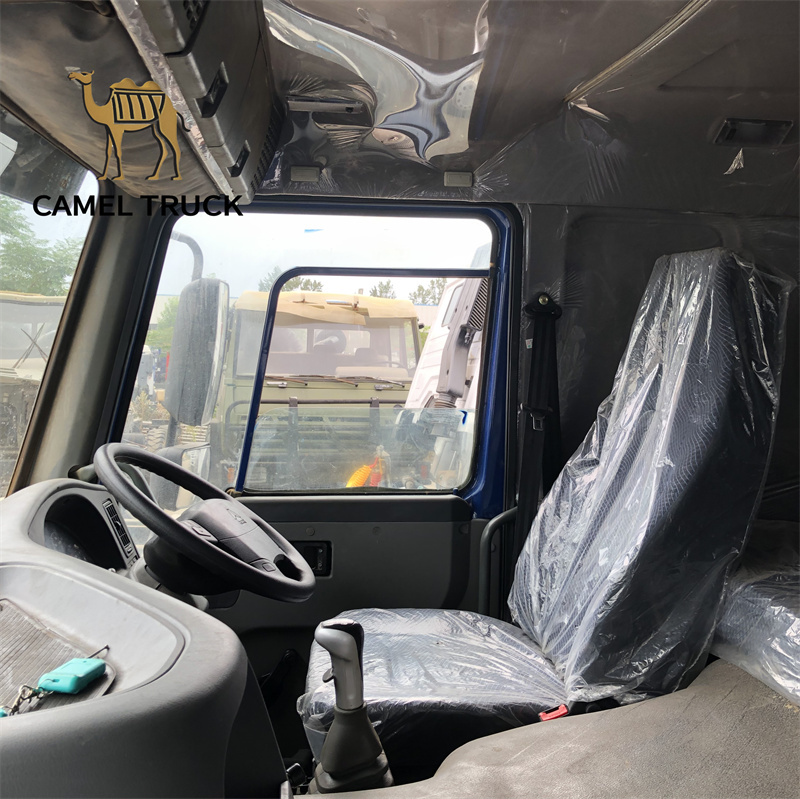

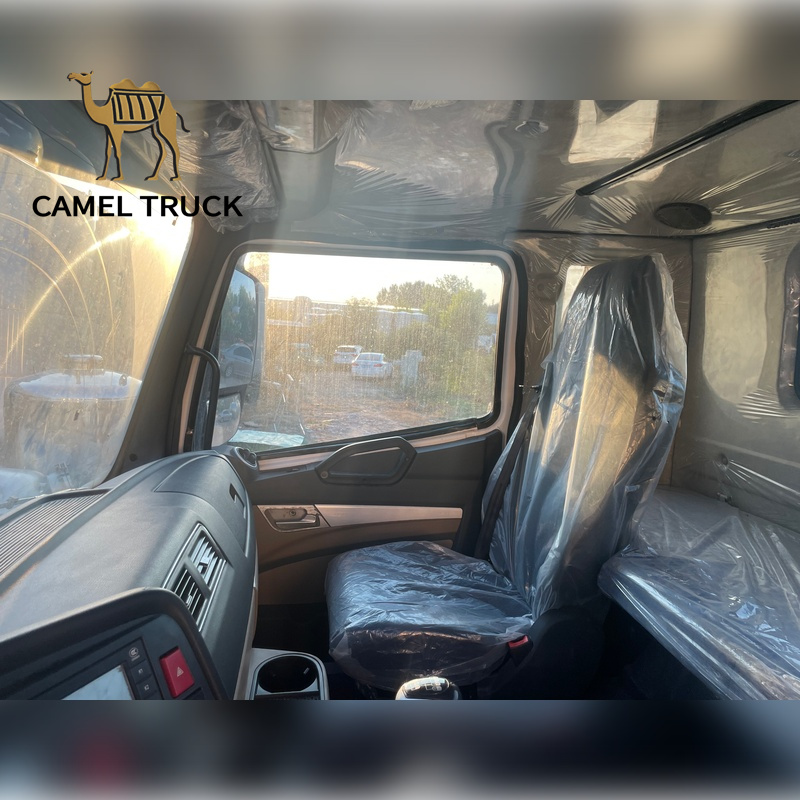

Cab | HW76cabin, one sleeper, with air conditioner | |
Detail Display
Company Profile

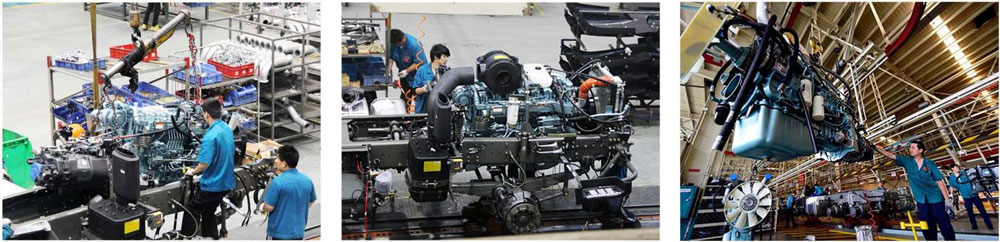

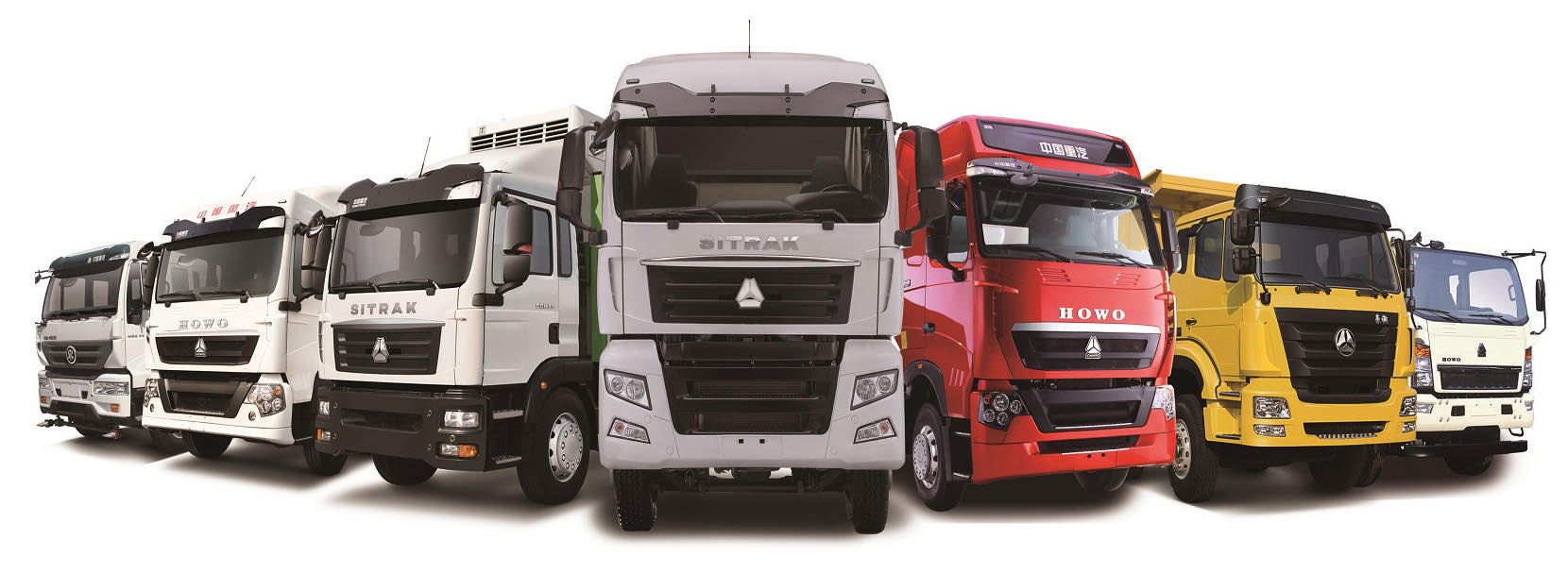

Shandong Camel Truck Co., Ltd, headquartered in Liangshan, Shandong, is a premier provider of used trucks and vehicle services. Since 2010, the company has built a team of nearly 300 employees, including over 200 skilled technicians. The company operates a 25,000-square-meter factory, where it refurbishes and services up to 3,000 trucks each year. Offering a broad selection of vehicles such as tractor trucks, dump trucks, and mixers from leading brands like Sinotruk, Shacman, Volvo, Mercedes-Benz, and Beiben, the company also delivers a full suite of services, including inspection, shipping, customs clearance, and after-sales support. Its extensive network covers more than 50 countries in Africa, Central Asia, and Southeast Asia, with annual revenue reaching $100 million in 2024.
Why Choose CAMEL TRUCK
Leveraging state-of-the-art diagnostic tools, we execute extensive engine inspections and performance trials, ensuring reliability through a detailed test report.

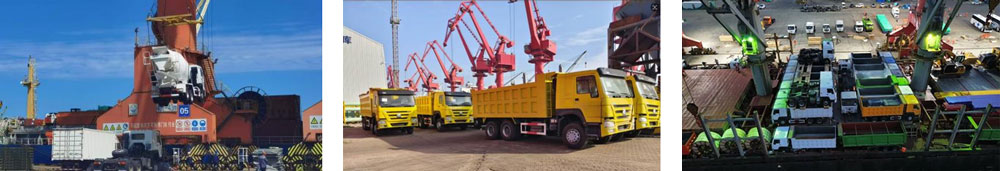

Timely delivery
