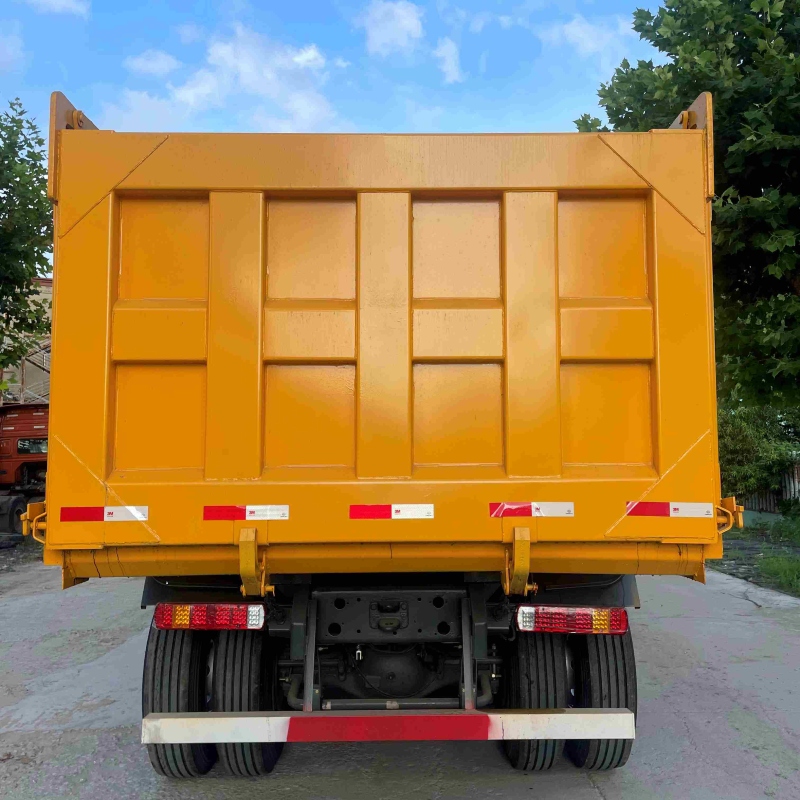

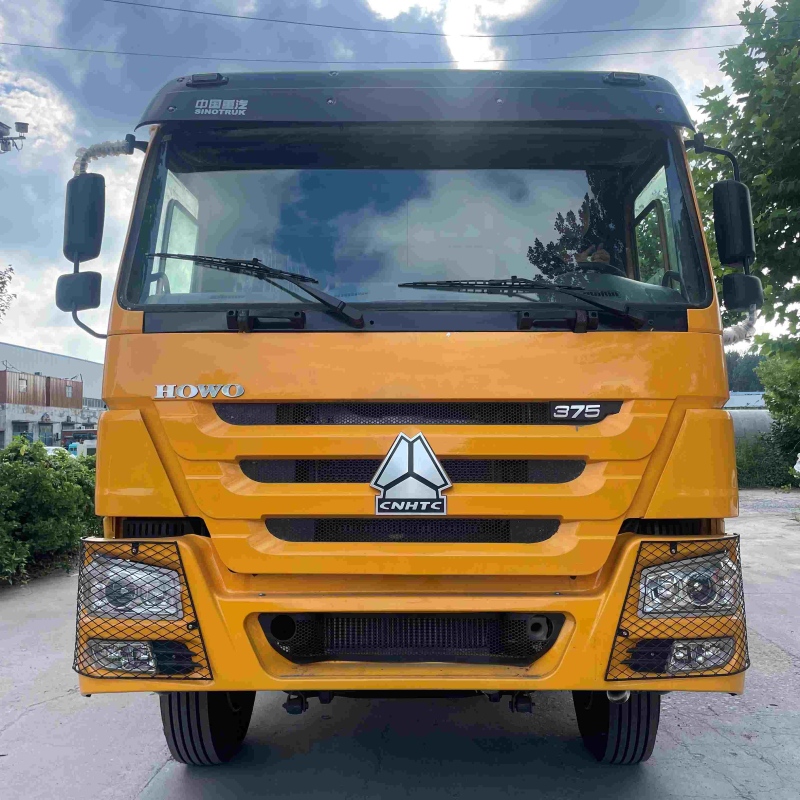

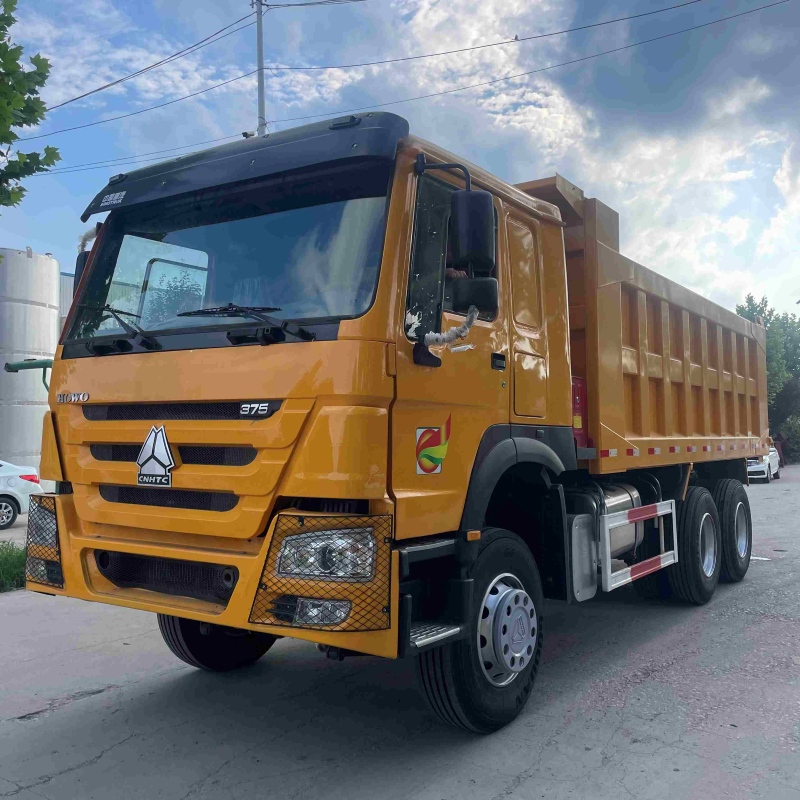

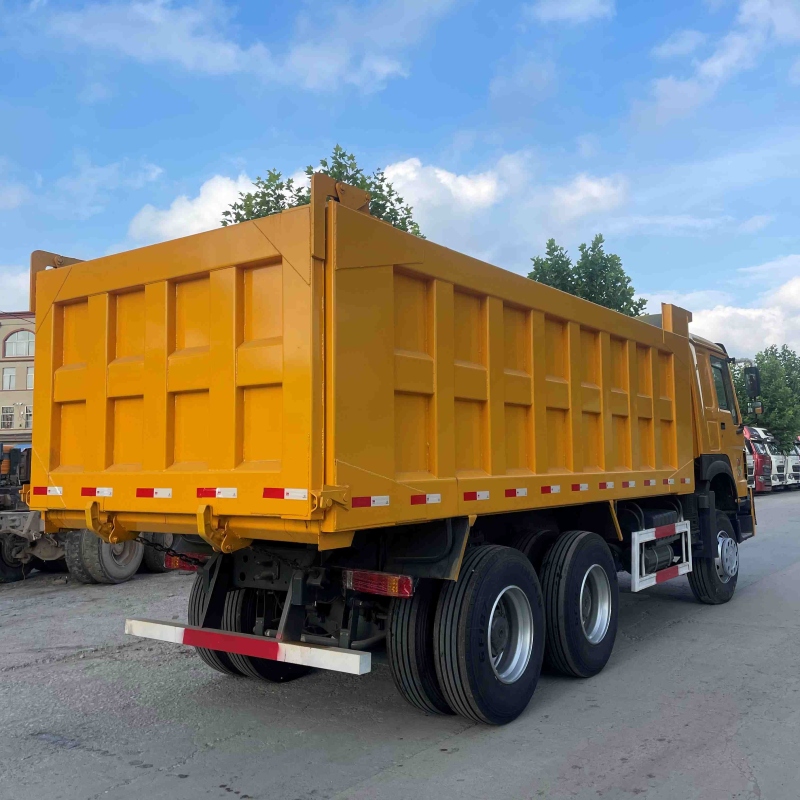

HOWO 10 Tires Mining Dump Truck
Second-hand Howo Tipper Truck, 10 Tyres
Chassis: 6×4 driving type
Engine: 371–375 HP, compliant with Euro 2/3 emission standards
Transmission: manual gearbox, 10–12 forward speeds
Cargo compartment: 5600×2300×1500 mm (modifiable as requested)
Payload: 30–40T carrying ability
Fuel system: 300–400L diesel tank
Wheels: 12.00R20 or 12R22.5 tyre specifications
Cabin design: single-sleeper, air-con equipped
Suspension: reinforced leaf spring assembly

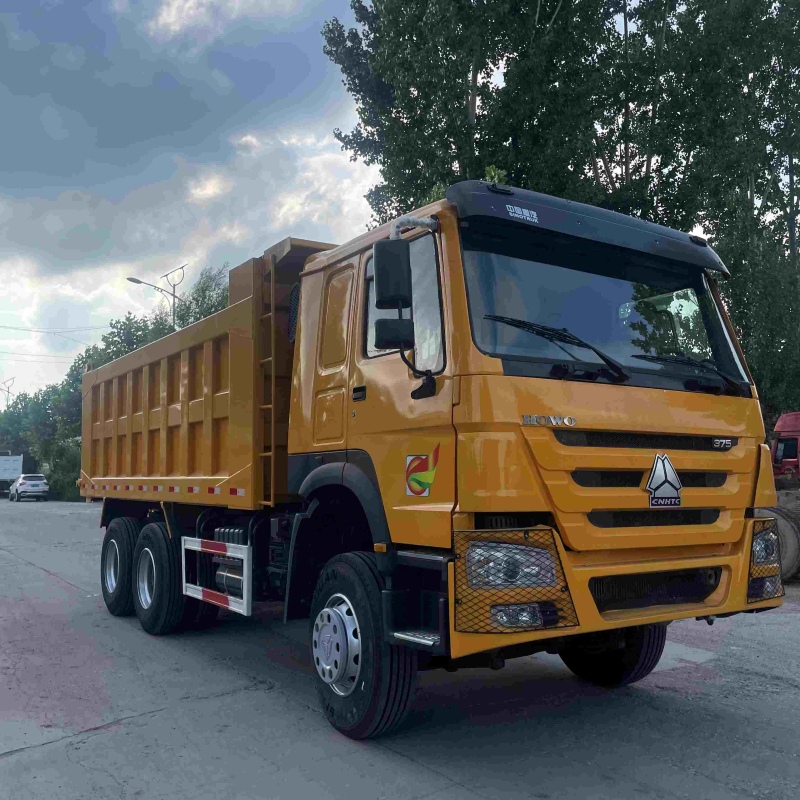

Used Howo 10 Tires Tipper
The upgraded HOWO 6×4 dump truck is engineered for strength and endurance. It finds frequent use in mining, construction, highway building, and massive earthmoving projects. Its reinforced body, heavy-duty drive system, and powerful motor allow it to carry large volumes of materials—such as stone, soil, and sand—through tough working environments. Whether operating in cities, remote quarries, or over long transport routes, this truck guarantees efficiency and durability.
Advantages

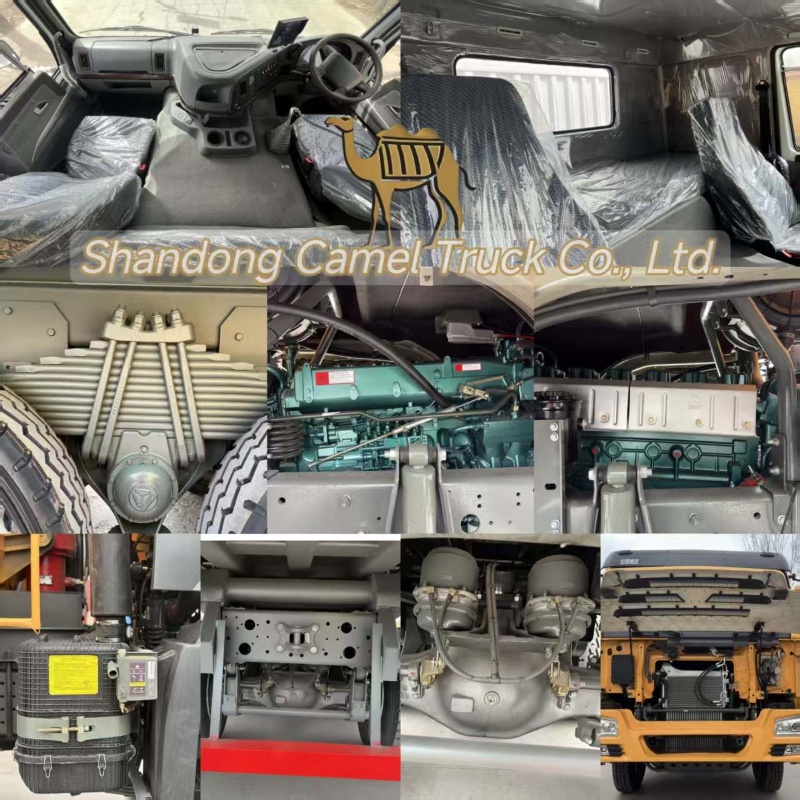

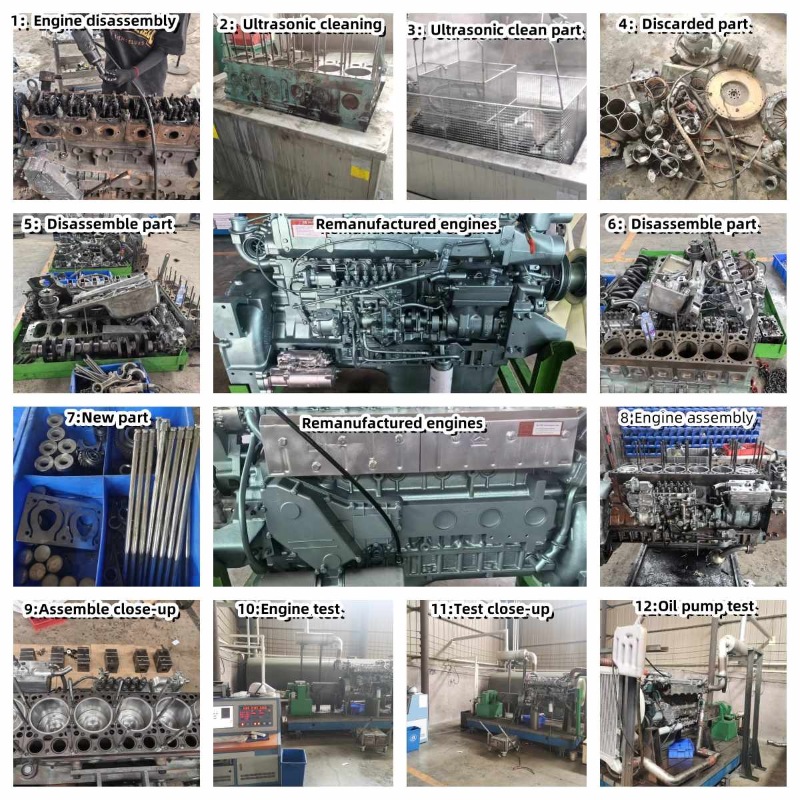

One clear strength of the refurbished HOWO 6×4 dump truck is its ability to deliver near-new performance at a lower purchase price. Every truck is carefully reconditioned, with upgrades including a renewed cargo bed, semi-new or brand-new tires, and refreshed interiors. Vital parts such as the powertrain, gearbox, and braking system go through strict testing and necessary repairs. This makes it possible for customers to own a reliable, efficient truck without the high expense of a new one.
Truck Specifications
Truck Models | ZZ3257N3847C1 | |
Truck Brand | SINOTRUK-HOWO | |
Driving Style | LHD | |
Dimension (LxWxH)(unloaded)(mm) | 8614x2496x3450 | |
Cargo body size (L*W*H, mm)(mm) | 5800x2300x1500 | |
Cargo thickness (mm) | Bottom: 8mm, Side: 6mm | |
Lift type of Carriage | middle lifting | |
Approaching angle/Departure angle | 19/26 | |
Overhang (front/rear) (mm) | 1500/1739 | |
Wheel base (mm) | 3825+1350 | |
Max speed (km/h) | 75 | |
Maximum gradeability (%) | 40 | |
Minimum ground clearance (mm) | 314 | |
Minimum turning circle (m) | 20 | |
Curb weight (kg) | 12290 | |
Loading Weight (kg) | 30000 | |
Fuel tanker capacity (L) | 300 | |
Fuel consumption (L/km) | 23L/100 km | |
Clutch | Single-plate dry clutch Mast 430 mm | |
Engine Model | Fuel type | Diesel |
Horse Power, max(kw/rpm) | ||
Emission | EURO II | |
Model | WD615, water-cooled, four strokes, 6 cylinders in line with water cooling, directly injection | |
Bore | 126mm | |
Stroke | 130mm | |
Compression ratio | 29.8hp/l | |
Specific fuel consumption | 195g/kwh | |
Transmission | Model | HW19710, 10 forwards and 2 reverse |
Brake system | Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels | |
Auxiliary brake | Engine exhaust brake | |
Steering system | Model | ZF8118 hydraulic steering with power assistance |
Front axle | HF9 | |
Rear axle | HC16 | |
Tyre | 12.002 | |
Electrical system | Battery | 2X12V/165Ah |
Alternator | 28V-1500kw | |
Starter | 7.5Kw/24V | |
Cab | HW76cabin, one sleeper, with air conditioner | |
