Refurbished Howo NX Tipper Truck
Powerful power and fuel efficiency - Equipped with Weichai or Sinotruk engines, it provides powerful power and fuel economy, suitable for high-intensity working environments.
The Refurbished Howo NX Tipper Truck is a cost-effective and reliable choice for heavy-duty transportation. It features a powerful Weichai or Sinotruk engine, ensuring strong power and fuel efficiency. The reinforced chassis and high-strength steel cargo box enhance durability, making it suitable for rugged terrains and heavy loads. Upgraded braking and safety systems provide secure and stable operation, while improved comfort and user-friendly controls enhance the driving experience.
Truck Brand | ||
Driving Style | LHD | |
Dimension (LxWxH)(unloaded)(mm) | 8614x2496x3450 | |
Cargo body size (L*W*H, mm)(mm) | 5800x2300x1500 | |
Cargo thickness (mm) | Bottom: 8mm, Side: 6mm | |
Lift type of Carriage | middle lifting | |
Approaching angle/Departure angle | 19/26 | |
Overhang (front/rear) (mm) | 1500/1739 | |
Wheel base (mm) | 3825+1350 | |
Max speed (km/h) | 75 | |
Maximum gradeability (%) | 40 | |
Minimum ground clearance (mm) | 314 | |
Minimum turning circle (m) | 20 | |
Curb weight (kg) | 12290 | |
Loading Weight (kg) | 30000 | |
Fuel tanker capacity (L) | 300 | |
Fuel consumption (L/km) | 23L/100 km | |
Clutch | Single-plate dry clutch 430mm | |
Engine Model (Steyr technology, made in China) | Fuel type | Diesel |
Horse Power, max(kw/rpm) | ||
Emission | EURO II | |
Model | WD615, water-cooled, four strokes, 6 cylinders in line with water cooling, directly injection | |
Bore | 126mm | |
Stroke | 130mm | |
Compression ratio | 29.8hp/l | |
Specific fuel consumption | 195g/kwh | |
Transmission | Model | HW19710, 10 forwards and 2 reverse |
Brake system | Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels | |
Auxiliary brake | Engine exhaust brake | |
Steering system | Model | ZF8118 hydraulic steering with power assistance |
Front axle | HF9 | |
Rear axle | HC16 | |
Tyre | 12.002 | |
Electrical system | Battery | 2X12V/165Ah |
Alternator | 28V-1500kw | |
Starter | 7.5Kw/24V | |
Cab | HW76cabin, one sleeper, with air conditioner | |
Shandong Camel Truck Professional Truck Refurbishment Expert
The five main processes of second-hand Sinotruk truck refurbishment include:
Engine Overhaul: Disassembling and thoroughly inspecting the engine, cleaning components, replacing damaged parts, and reassembling to restore the engine's performance to near-new condition.
Transmission and Drivetrain Repair: Checking and repairing the transmission, axles, clutch, and driveshafts, replacing worn-out components to ensure smooth and reliable power transmission.
Exterior Restoration: Repairing any body damage and repainting the truck's body, chassis, and rims to restore its appearance to like-new condition.
Critical Component Upgrades: Replacing key components like the battery, fuel system, electrical wiring, brake system, and air conditioning to enhance safety and reliability.
Cabin Renovation: Updating the interior with new seats, a fresh dashboard, improved air conditioning, and other features to increase driver comfort and operational efficiency.
Why Choose CAMEL TRUCK

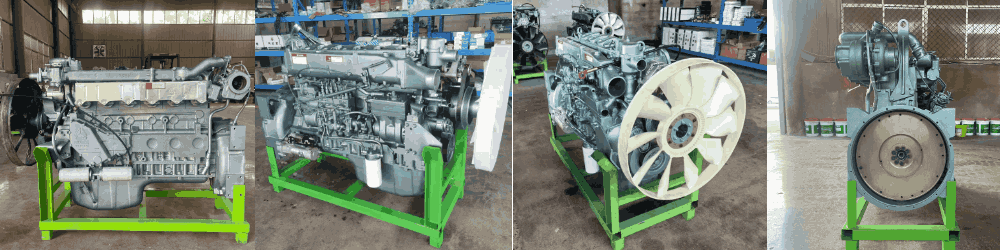

Rebuild Engines
Comprehensive Engine Overhaul: The engine is disassembled, cleaned using ultrasound, damaged parts are replaced, and it's reassembled. It undergoes rigorous testing, including oil pump and fuel injection frequency checks to ensure optimal performance.
Cost-Effective Performance: The rebuilt engine matches the original SINOTRUK engine in performance, offering comparable quality at a significantly lower price, with real-world tests revealing no noticeable deficiencies during operation.
By sea transport
CAMEL TRUCK has extensive experience in global shipping, working with world-renowned shipping companies and trusted freight forwarders. Our strong partnerships and efficient logistics network allow us to easily manage complex international shipments, ensuring our customers receive their products in a timely manner or avoid product damage. Whether it is sea, land or air transportation, we are committed to providing reliable, cost-effective and on-time delivery solutions around the world.
Client Visit
Customers can visit the factory directly to understand the production process, quality control, and equipment facilities, and enhance their trust in products and services.
