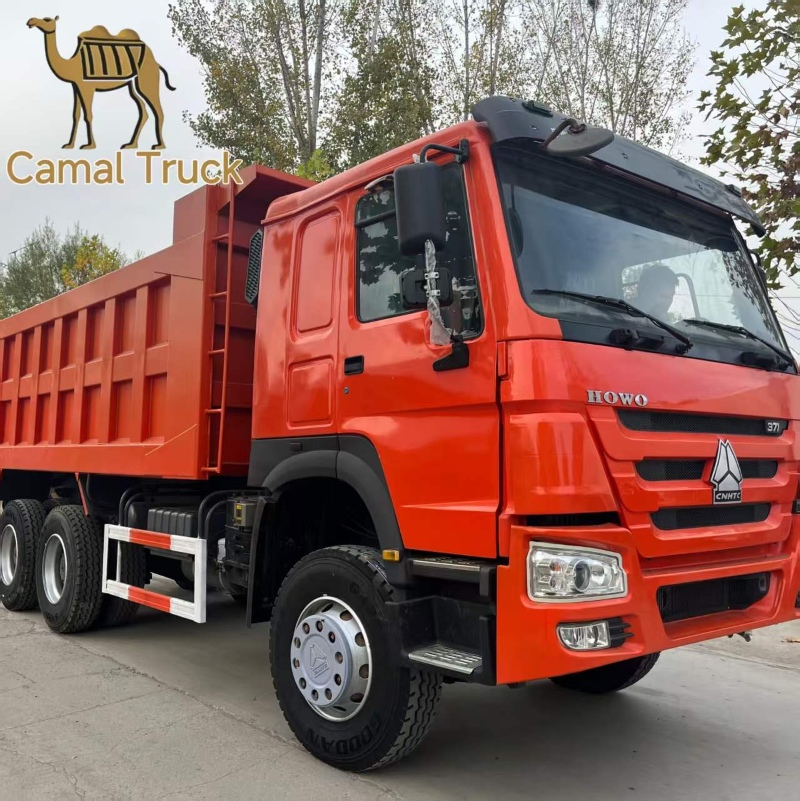

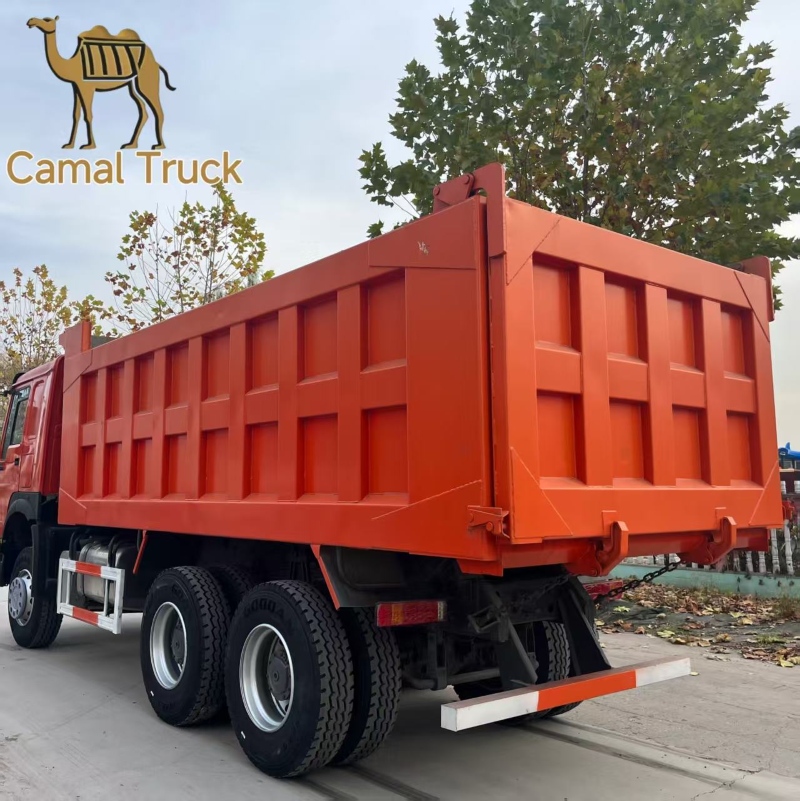

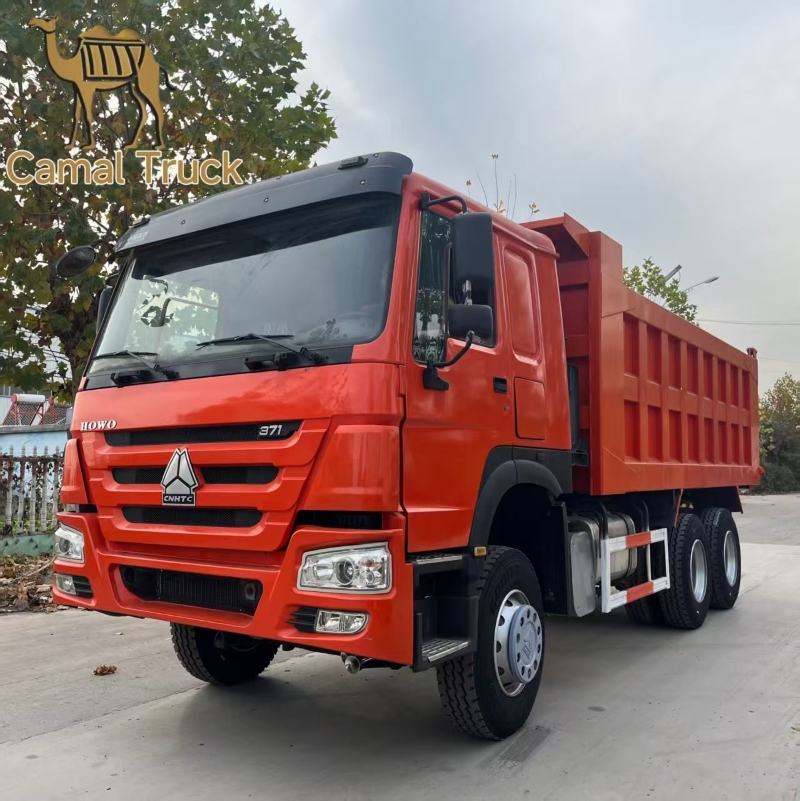

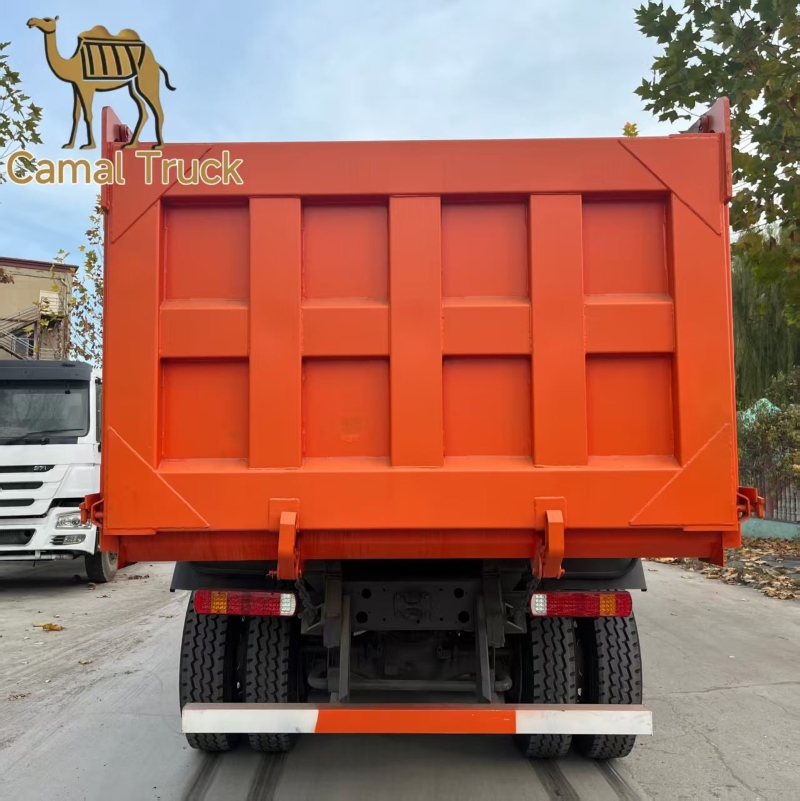

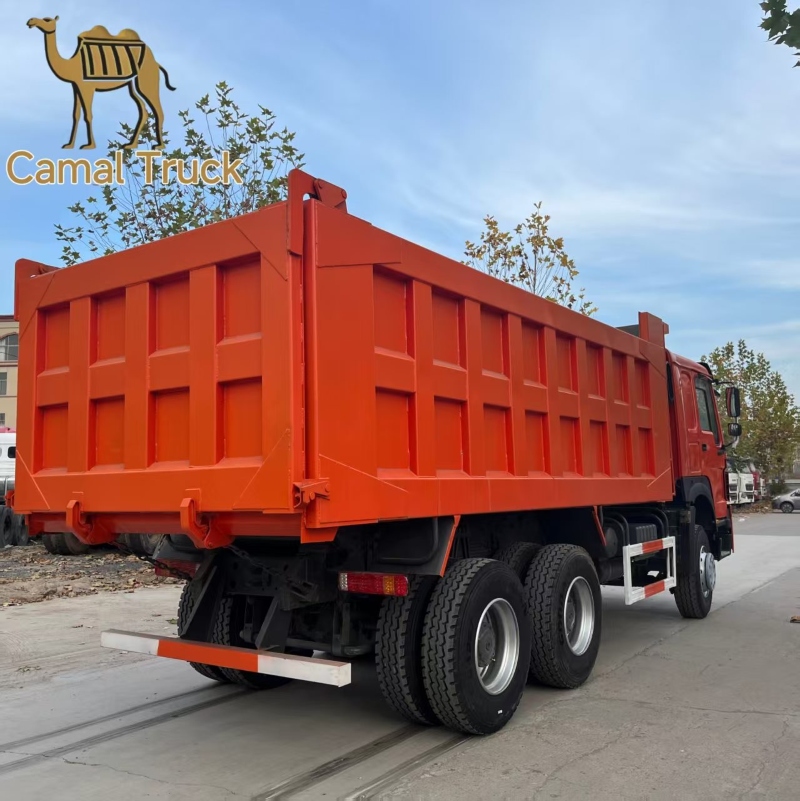

Used Sinotruck HOWO Dump Truck
Howo Used Tipper Truck (10 Tires)
Drive: 6×4 configuration
Power unit: 371 / 375 horsepower engine, Euro 2 / 3 emission
Transmission: manual, 10 to 12 gears
Cargo body: customizable, around 5600×2300×1500 mm
Payload: supports 30–40 tons
Fuel capacity: between 300 and 400 liters
Tires: available in 12.00R20 or 12R22.5 options
Driver’s cab: single sleeper with air-conditioning system
Suspension type: strengthened multi-leaf springs
Used Howo 10 Tires Tipper
The reconditioned HOWO 6×4 dump truck is suitable for demanding industries such as mining, large construction projects, road development, and bulk earthmoving. With its robust chassis, strong drive system, and powerful engine, the vehicle is capable of handling difficult working conditions while transporting materials such as gravel, rocks, sand, or soil. No matter if it is for remote site hauling, city construction, or cross-regional delivery, this HOWO tipper offers dependable operation and fuel efficiency.
Advantages

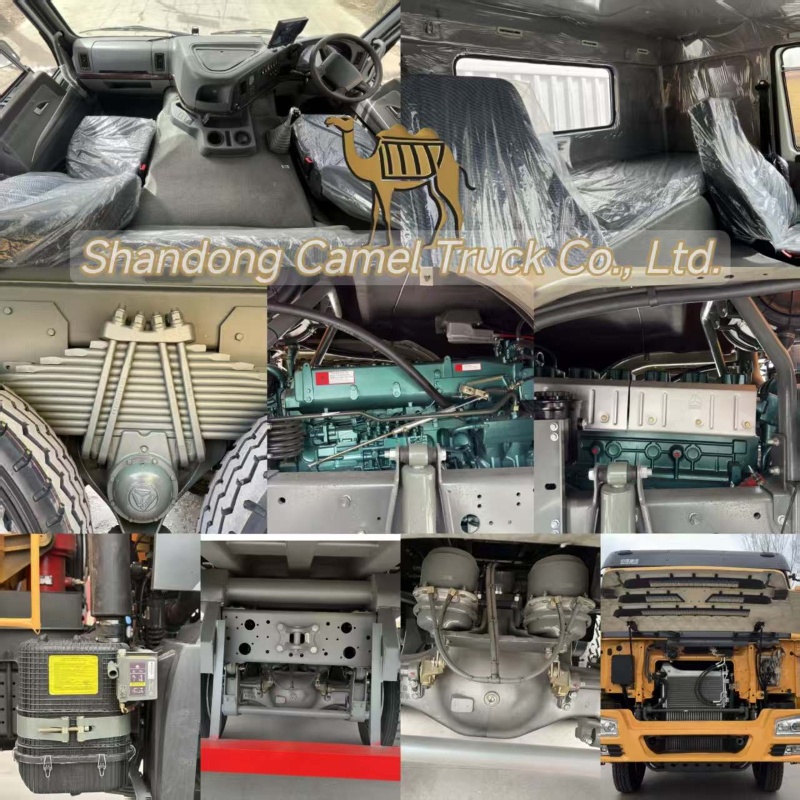

The refurbished HOWO 6×4 dump truck offers excellent value for money by combining durability with affordability. Each unit is thoroughly checked and renewed, often fitted with new cargo bodies, upgraded interiors, and either new or nearly new tires. Key components—engine, transmission, and braking system—are restored and tested to meet working demands. As a result, buyers enjoy performance close to a brand-new truck at only a fraction of the cost.
Truck Specifications
Truck Models | ZZ3257N3847C1 | |
Truck Brand | SINOTRUK-HOWO | |
Driving Style | LHD | |
Dimension (LxWxH)(unloaded)(mm) | 8614x2496x3450 | |
Cargo body size (L*W*H, mm)(mm) | 5800x2300x1500 | |
Cargo thickness (mm) | Bottom: 8mm, Side: 6mm | |
Lift type of Carriage | middle lifting | |
Approaching angle/Departure angle | 19/26 | |
Overhang (front/rear) (mm) | 1500/1739 | |
Wheel base (mm) | 3825+1350 | |
Max speed (km/h) | 75 | |
Maximum gradeability (%) | 40 | |
Minimum ground clearance (mm) | 314 | |
Minimum turning circle (m) | 20 | |
Curb weight (kg) | 12290 | |
Loading Weight (kg) | 30000 | |
Fuel tanker capacity (L) | 300 | |
Fuel consumption (L/km) | 23L/100 km | |
Clutch | Single-plate dry clutch Mast 430 mm | |
Engine Model | Fuel type | Diesel |
Horse Power, max(kw/rpm) | ||
Emission | EURO II | |
Model | WD615, water-cooled, four strokes, 6 cylinders in line with water cooling, directly injection | |
Bore | 126mm | |
Stroke | 130mm | |
Compression ratio | 29.8hp/l | |
Specific fuel consumption | 195g/kwh | |
Transmission | Model | HW19710, 10 forwards and 2 reverse |
Brake system | Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels | |
Auxiliary brake | Engine exhaust brake | |
Steering system | Model | ZF8118 hydraulic steering with power assistance |
Front axle | HF9 | |
Rear axle | HC16 | |
Tyre | 12.002 | |
Electrical system | Battery | 2X12V/165Ah |
Alternator | 28V-1500kw | |
Starter | 7.5Kw/24V | |
Cab | HW76cabin, one sleeper, with air conditioner | |
Customer Visits

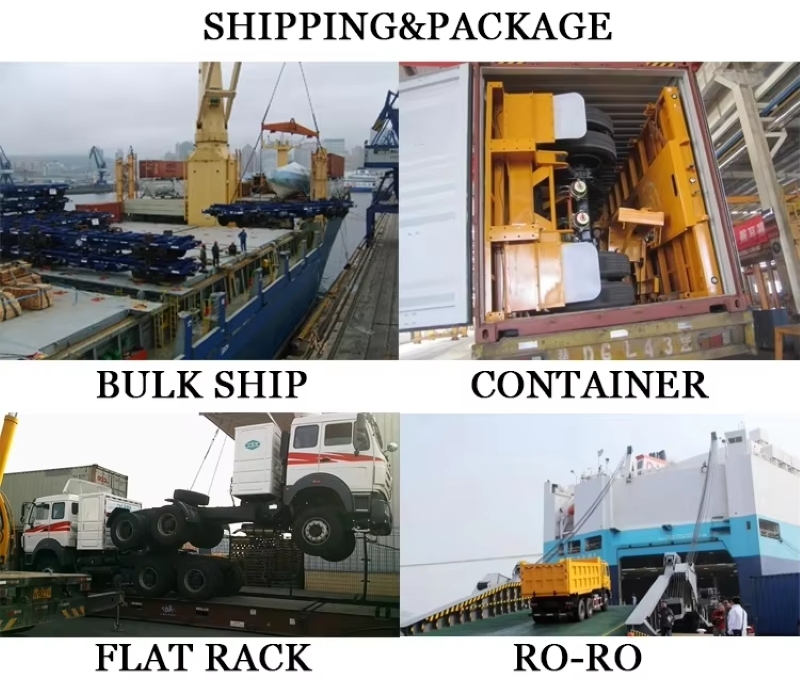

Sea Freight
