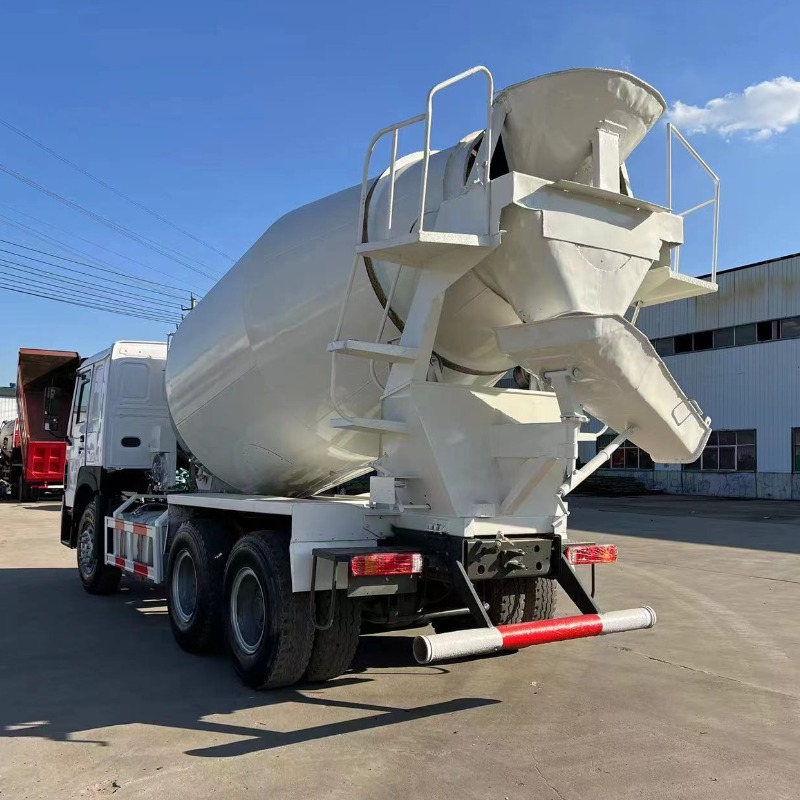

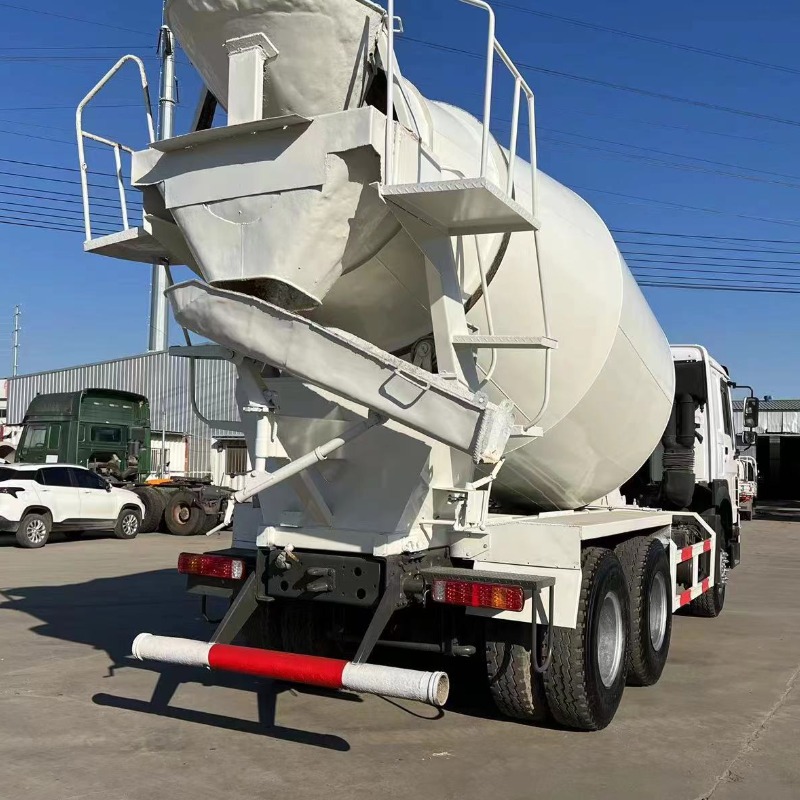

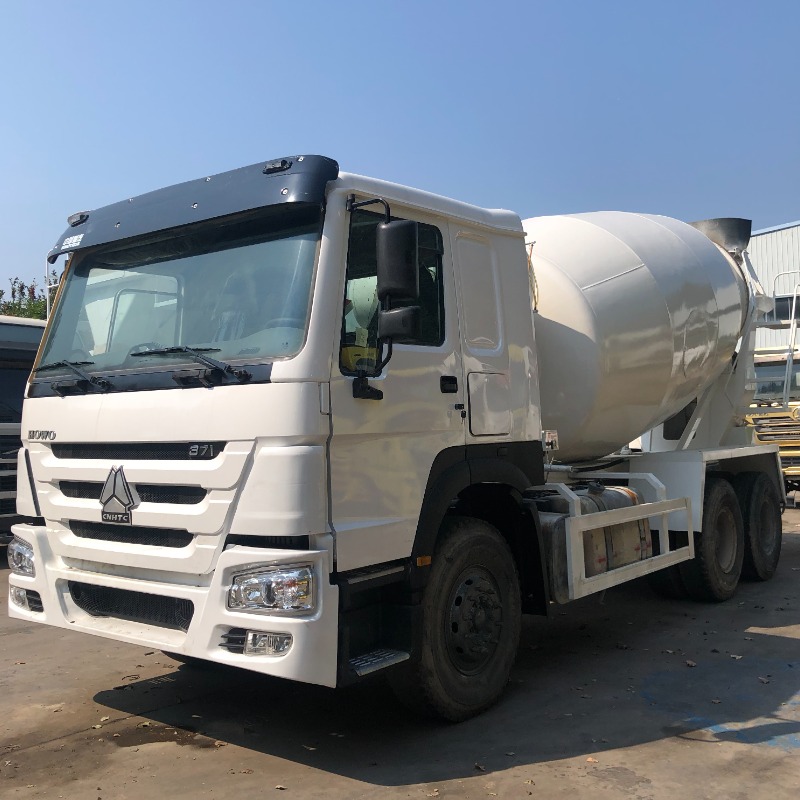

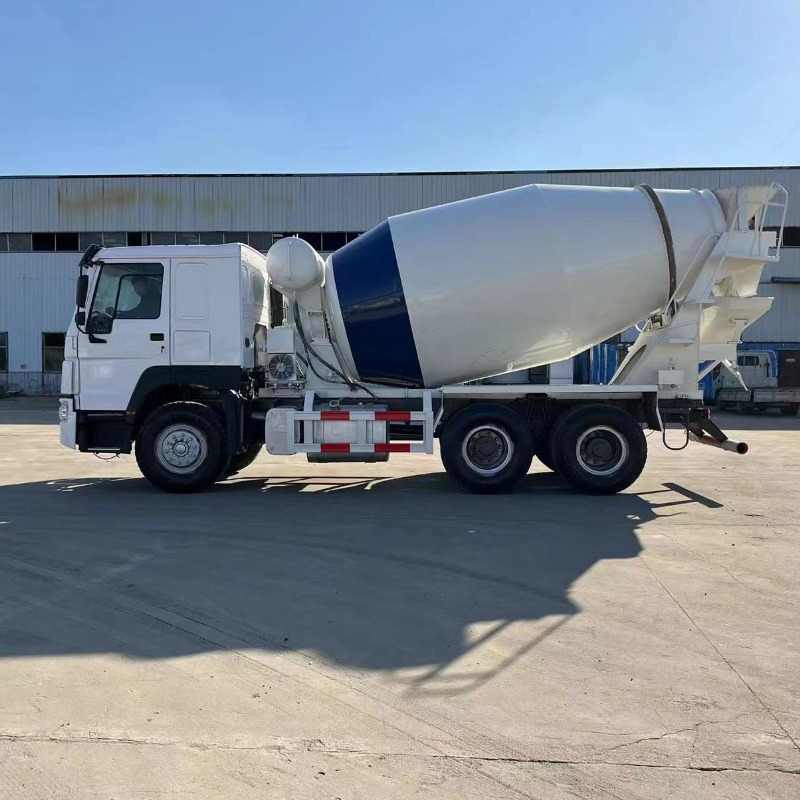

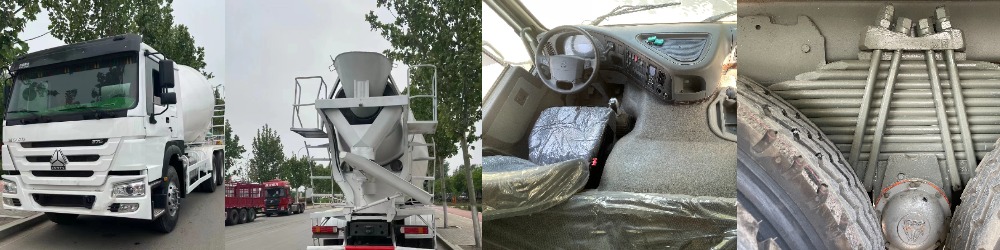

HOWO Concrete Mixer Truck
High Capacity: 14 cubic meters mixing drum suits large construction needs.
Strong Power: Equipped with 336–371 HP engine and heavy-duty 6x4 chassis.
Efficient Mixing: Durable drum, high rotation speed, low residue discharge.
Product Introduction
The Howo 6x4 Concrete Mixer truck (14 cubic meters) is a heavy-duty vehicle designed for transporting and mixing large volumes of concrete efficiently. Built on a robust 6x4 chassis, it offers excellent traction and stability on various terrains, making it ideal for construction sites. The mixer is powered by a powerful 336–371 horsepower diesel engine, ensuring strong performance even under full load.

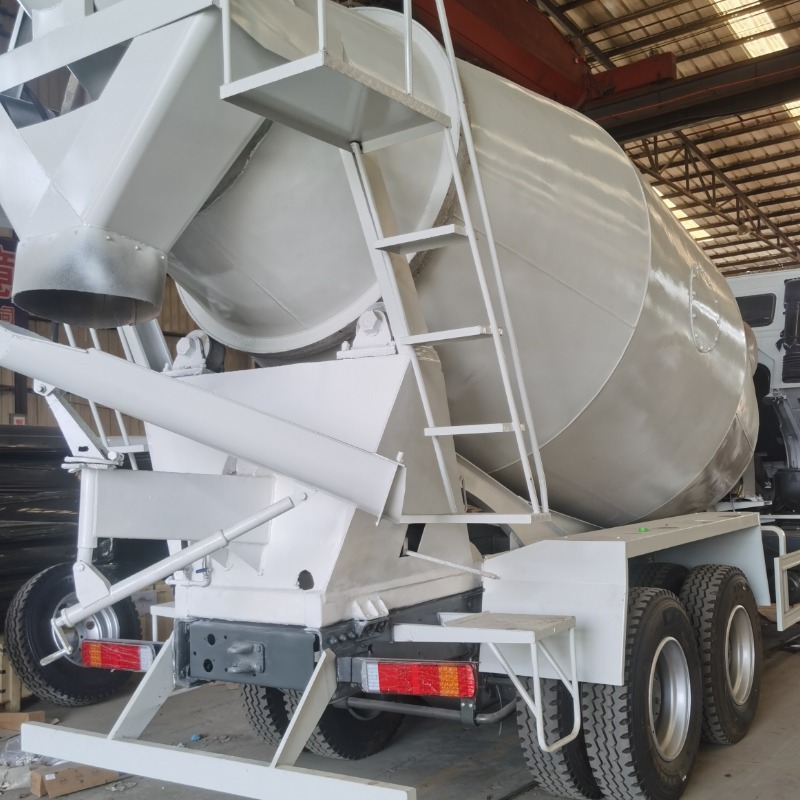

Its 14m³ mixing drum is made of high-strength wear-resistant steel, capable of continuous rotation to keep the concrete in optimal condition during transit. The truck features a hydraulic system for smooth drum rotation and a rear chute for precise concrete discharge. With a reliable transmission, heavy-duty axles, and reinforced suspension, the truck ensures long-lasting durability and minimal maintenance.
This model is widely used in urban construction, road works, and infrastructure projects, offering efficiency, reliability, and cost-effectiveness. It's a top choice for contractors needing a balance between high capacity and maneuverability.
Parameter
Item | Specification |
Model | Howo ZZ1257N3841W / Howo 6x4 Mixer Truck |
Drive Type | 6x4 |
Engine Model | WD615.47 (Euro II) or D12.38 (Euro III/IV) |
Horsepower | 371 HP |
Displacement | 9.726 L |
Transmission | HW19710, 10-speed manual |
Cabin | HW76, with one sleeper and A/C |
Mixing Drum Capacity | 14 m³ (cubic meters) |
Drum Material | Q345B high-strength steel |
Feeding Speed | ≥ 3 m³/min |
Discharge Speed | ≥ 2 m³/min |
Residue Rate | ≤ 0.5% |
Water Supply | Air pressure water tank system |
Wheelbase | 3825 + 1350 mm |
Overall Dimensions | Approx. 9600×2500×3950 mm |
Gross Vehicle Weight | ~30,000 kg |
Tire Size | 12.00R20 (or 315/80R22.5) |
Fuel Tank Capacity | 300 L |
Braking System | Dual circuit air brake + exhaust brake |
About us
Shandong Camel Truck factory was established in 2008, Qingong international Group, which is located in jinan City, the provincial capital of shandong ProvincChina, has business for heavy duty trucks and construction machinery,internaional rade, inance investment and educaton.As one of the largerst heavy duty trucks and machinery exporter in North of China, Qingong is oficial authorted exponer
SINOTRUK Group and has over 100 countries international business and the annual sales figure exceeds UsD 100 miion.
It is an important export partner of the world famous brands such as SINOTRUK, SHACMAN, BEIBENDongfeng,FotOn,XCMG,SANY,SHANTUl,SDLG and ClMc, and manages the export of QlNGoNG producis wih a siablcustomers network and good reputation both in China and abroad.
Unique Technology

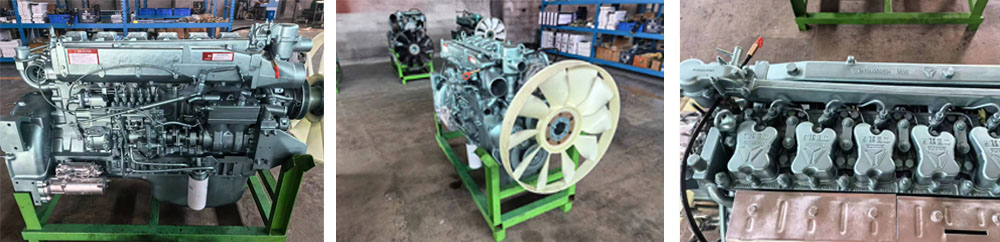

The engine is fully disassembled to assess its condition and plan maintenance. Worn parts (over 20%) are replaced. All parts are cleaned with industrial ultrasonic waves to remove oil, carbon, and scale, making wear easier to spot. Good parts are polished; damaged ones are discarded and replaced. The engine is reassembled using strict procedures, including proper sealing, torque settings, and cleaning with gasoline. The oil pump is tested and calibrated for accurate fuel injection. Finally, engine performance is checked through load simulation, data analysis (power, torque, temperature), and leak detection to ensure optimal, reliable operation.
