Used Howo Pump Truck
Safety Technology
Boom Overload Protection Technology
Relief valves are mounted on the boom cylinder counterbalance valves. These valves will release pressure in the event of excessive boom load to prevent damage to the boom.
Hopper Screen Interlock Technology
As an operator protection measure, the pump will automatically stop when the hopper screen is opened.
Hydraulic Oil Level Monitoring
The oil level in the hydraulic reservoir is continually monitored. If the level drops below a preset level, an alarm will sound and the pump will be stopped to prevent damage to the hydraulic system.

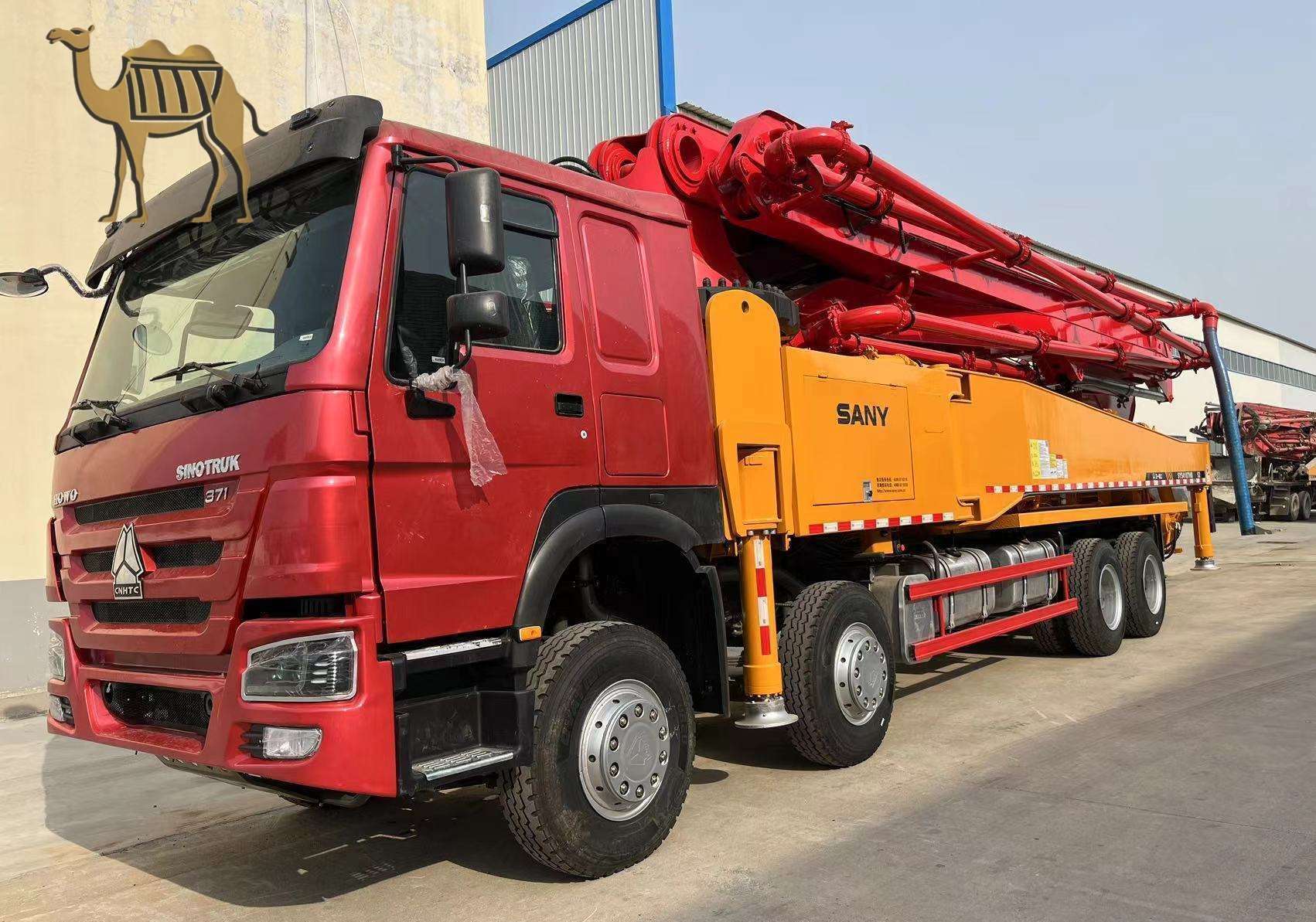

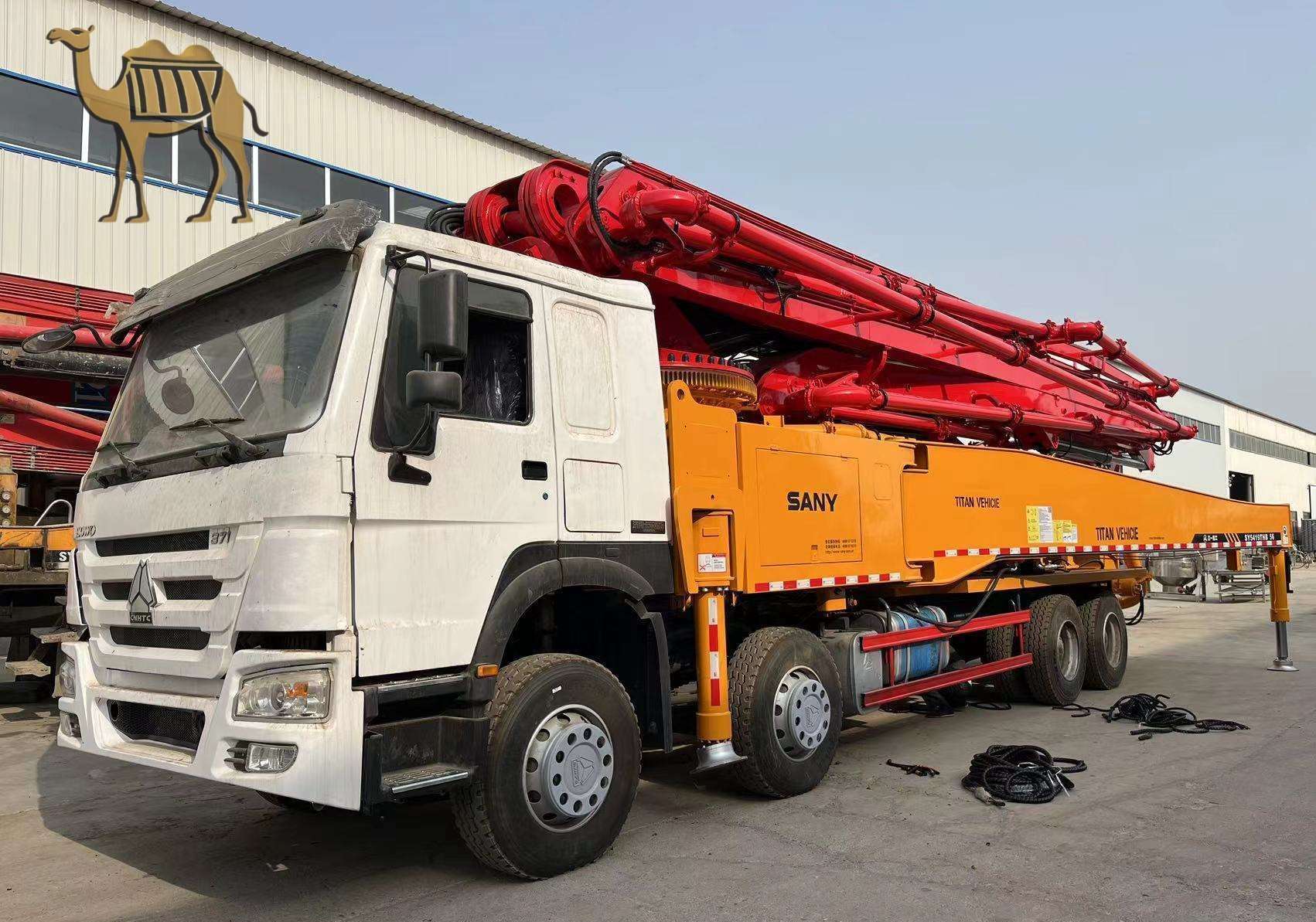

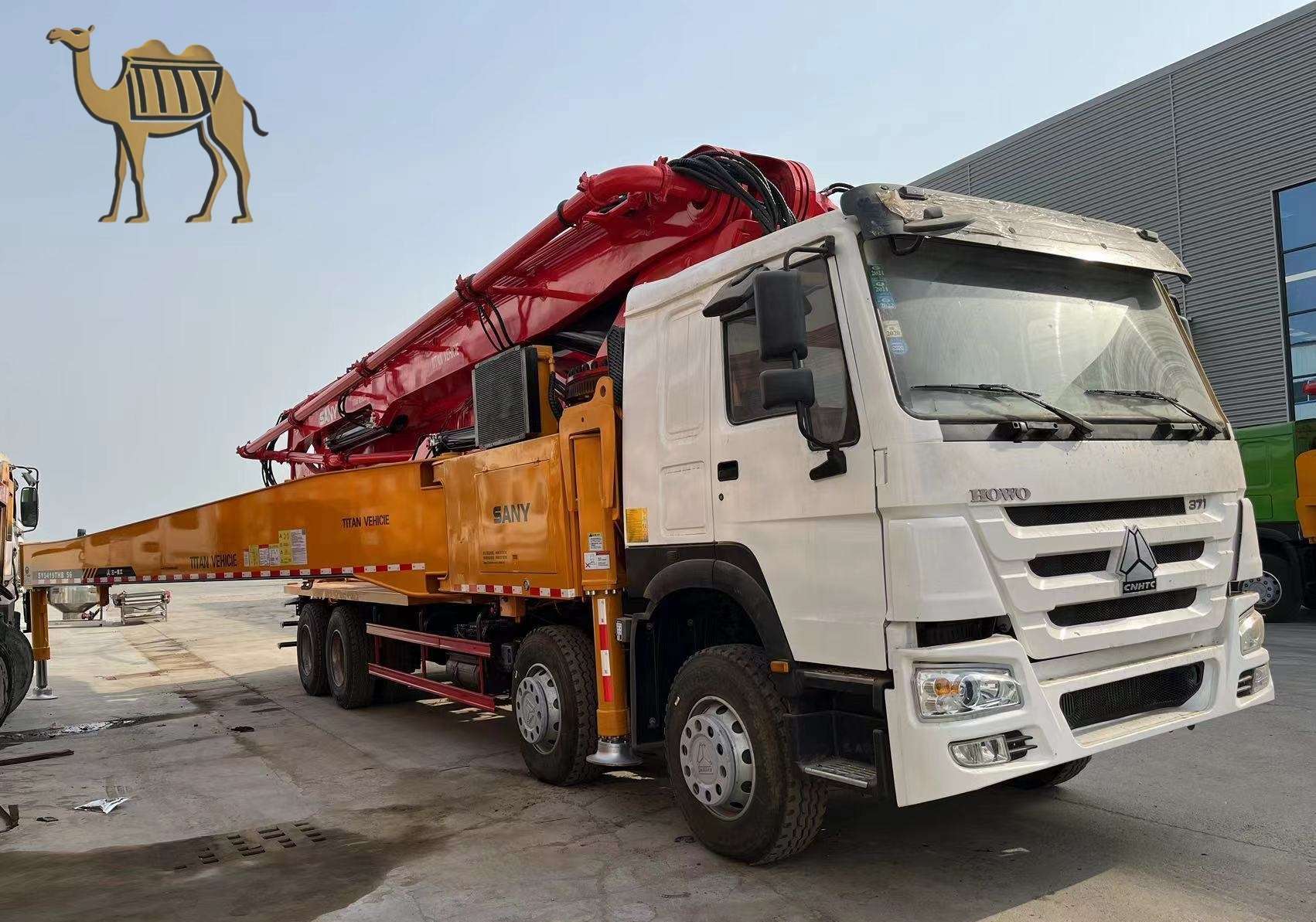

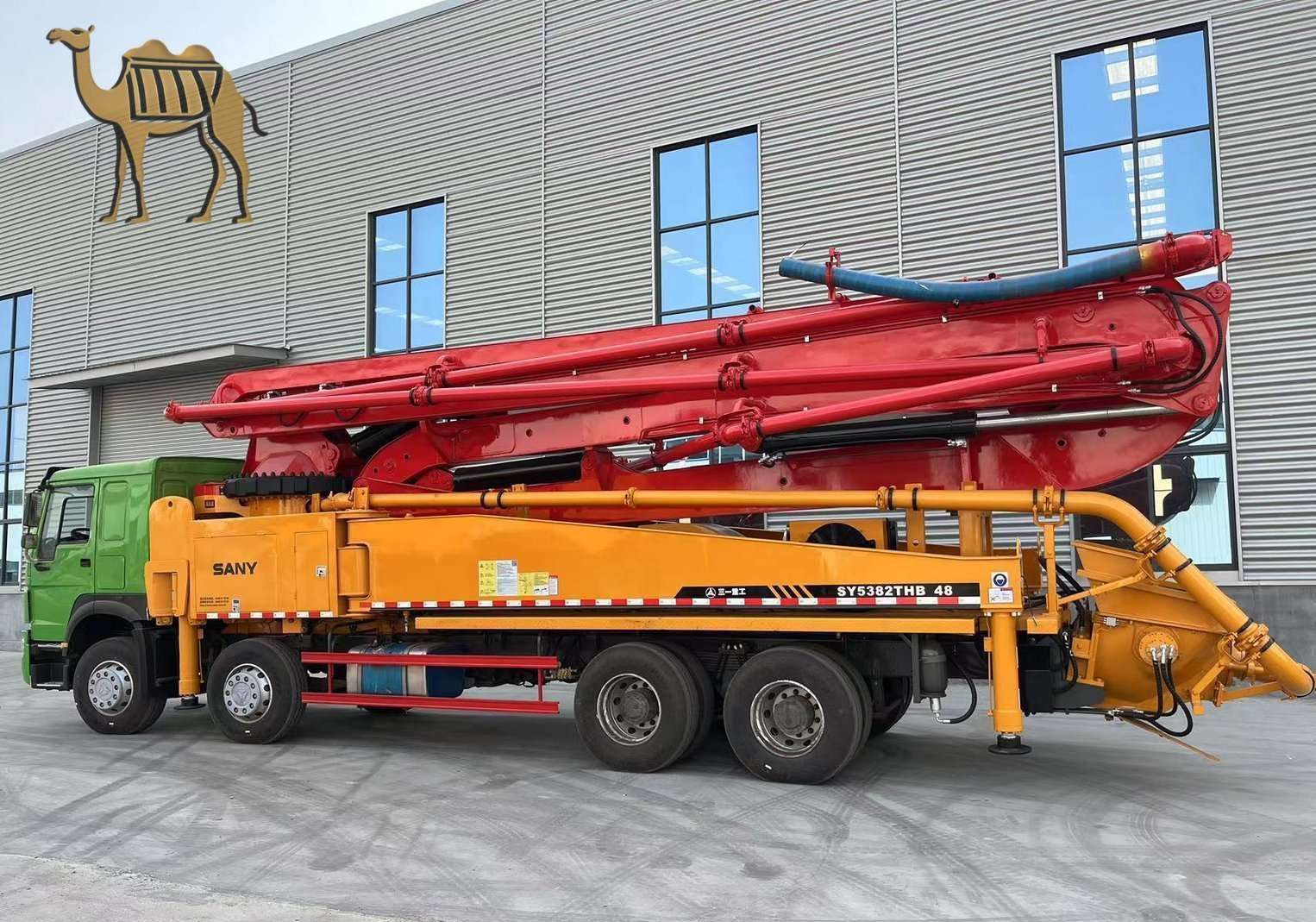

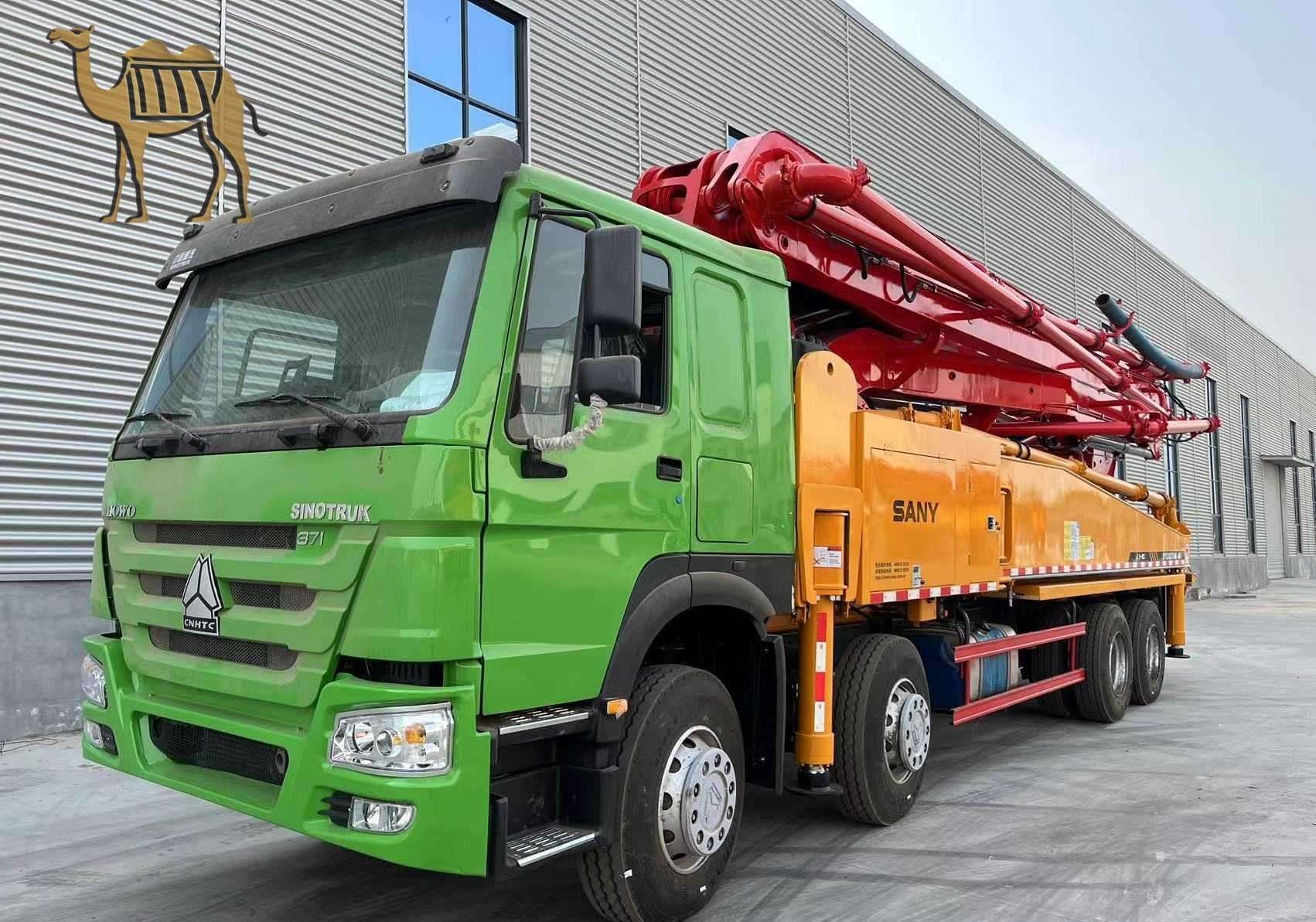

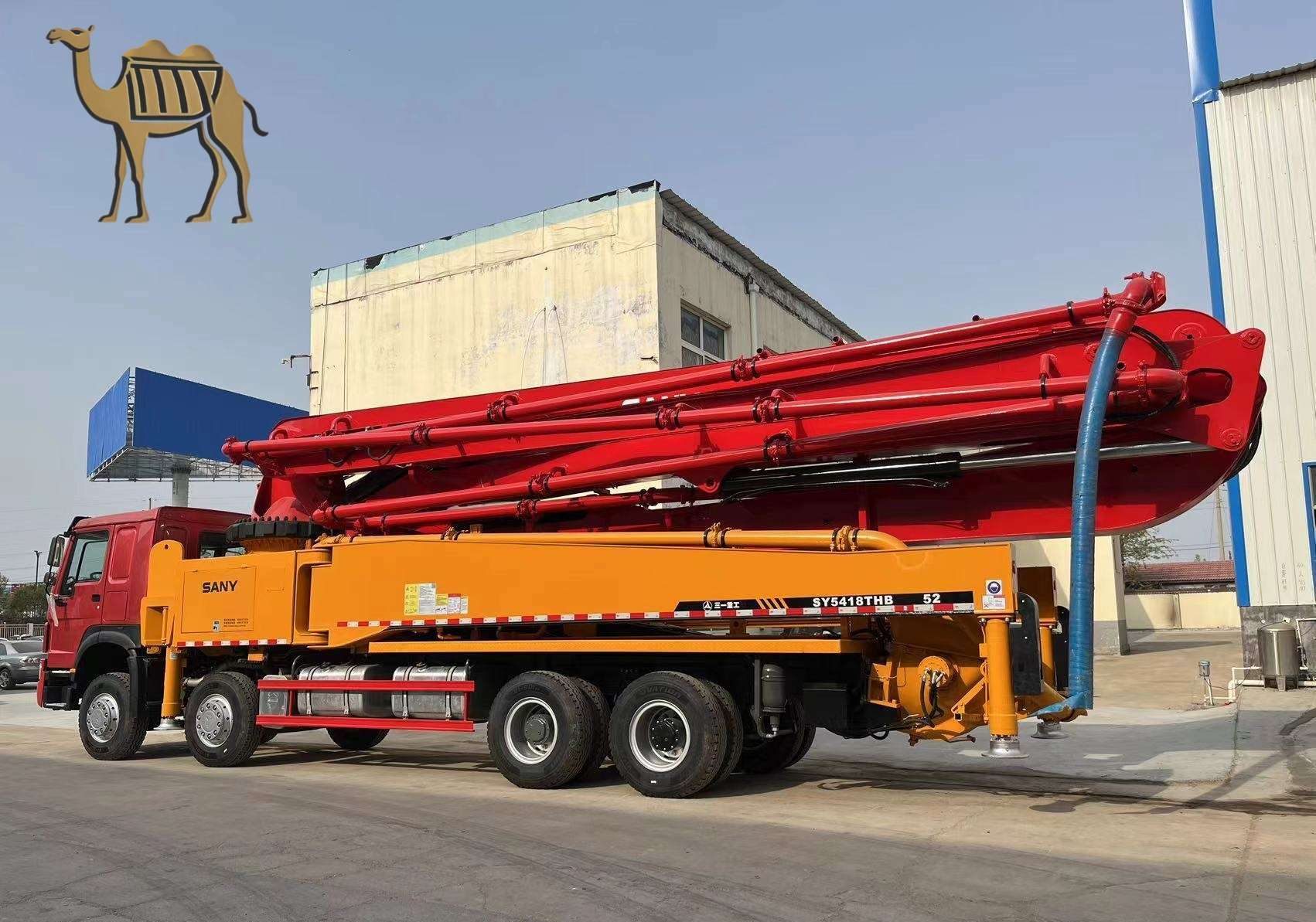

HOWO heavy-duty 46/48/50/52/56m concrete pump truck
HOWO truck-mounted concrete pump has 35m vertical reach with the height limit programmed to prevent boom contact with an obstruction or overhead hazard. The concrete pump provides the users reliable pumping performance along with the highly wear resistant parts including delivery pipe, discharge port, transition bushing, concrete piston, wear plate, cutting ring and delivery cylinder that improve the pumping efficiency and reduce time
Product Parameters
SINOTRUK HOWO 8x4 Pump Truck LHD/RHD | |
Engine emission standard | EURO II |
Overall dimensions(L´W´H) | 14360mm×2530mm×4000mm |
Displacement/Rated power(L/kw) | 10677/320 |
Steering type | Steering wheel |
Axle numbers | 4 |
Wheelbase(mm) | 2300+4050+1350 |
Steel spring number (front/rear) | 4/4/4 |
Track (front /rear)(mm) | 2140/1804 |
Gearbox | HW19710 |
Max. overall mass(kg) | 44000 |
Max. overall mass front axle(kg) | 18000 |
Max overall mass middle/rear axle(kg) | 26000 |
Permitted number in the driver cab | 2 |
Front/rear overhang(mm) | 1500/3320 |
Front/rear extension of boom(mm) | 0/1840 |
Max. driving speed(km/h) | 90 |
Min. ground clearance(mm) | 312 |
Max. vertical conveying distance(m) | 60M |
Max. horizontal conveying distance(m) | 46/48/50/52/56 |
1: These machines are original?
Yes, our machine are all original.
2: Whether these machines are in good condition
Yes, we can offer you these machines details and videos, if necessary, you can visit our factory.
3: Do you have other services?
Our company’s aim to meet your satisfaction, our services including best price, shipping&packaging, book cargo space,help you buy parts .
4: How can we make a deal done?
The procedure mainly goes like this as the following steps:
checking machine-->if satisfied-->paying 30% deposit-->booking cargo space--clean the balance --loading-->getting the B/L
