Product introduction

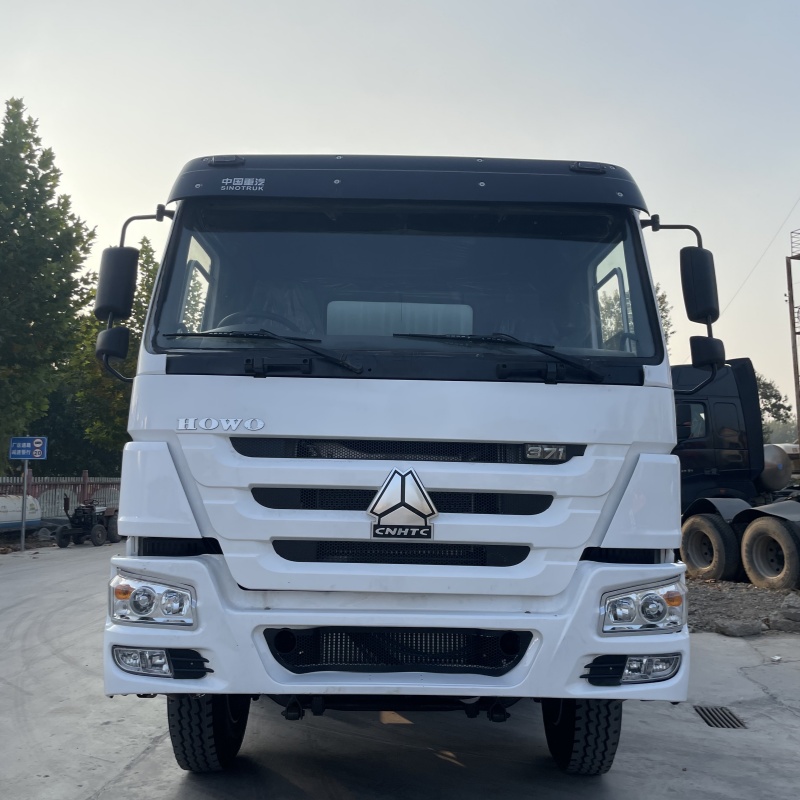

HOWO Dump Truck – Rugged, Reliable & Cost-Effective.Designed for tough jobsites across developing markets, the HOWO dump truck delivers exceptional value with proven reliability, fuel efficiency, and safety. Its fuel-tolerant engine handles Africa’s harsh roads with ease, while minimal maintenance keeps your operating costs low. Equipped with SINOTRUK’s legendary HOWO gearbox, it offers smooth power and unmatched durability – built to last in the most demanding conditions.
Parameter
Truck Models | ZZ3257N3847C1 | |||
Truck Brand | SINOTRUK-HOWO | |||
Driving Style | LHD | |||
Dimension (LxWxH)(unloaded)(mm) | 10560x2500x3400 | |||
Cargo body size (L*W*H, mm)(mm) | 7600x2300x1500 | |||
Cargo thickness (mm) | Bottom: 8mm, Side: 6mm | |||
Lift type of Carriage | middle lifting | |||
Approaching angle/Departure angle | 19/26 | |||
Overhang (front/rear) (mm) | 1500/1739 | |||
Wheel base (mm) | 3825+1350 | |||
Max speed (km/h) | 75 | |||
Maximum gradeability (%) | 40 | |||
Minimum ground clearance (mm) | 314 | |||
Minimum turning circle (m) | 20 | |||
Curb weight (kg) | 12290 | |||
Loading Weight (kg) | 30000 | |||

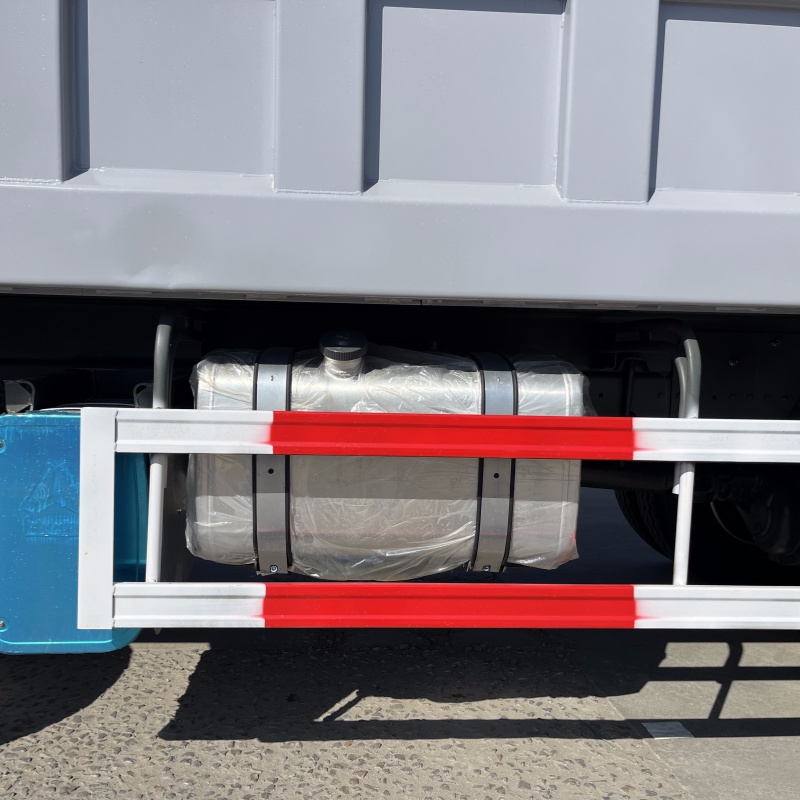

Fuel tanker capacity (L) | 300 | |||
Fuel consumption (L/km) | 23L/100 km | |||
Clutch | Single-plate dry clutch 桅430mm | |||
Engine Model (Steyr technology, made in China) | Fuel type | Diesel | ||
Horse Power, max(kw/rpm) | 371hp | |||
Emission | EURO II | |||
Model | WD615, water-cooled, four strokes, 6 cylinders in line with water cooling, directly injection | |||
Bore | 126mm | |||
Stroke | 130mm | |||
Compression ratio | 29.8hp/l | |||
Specific fuel consumption | 195g/kwh | |||
Transmission | Model | HW19710, 10 forwards and 2 reverse | ||

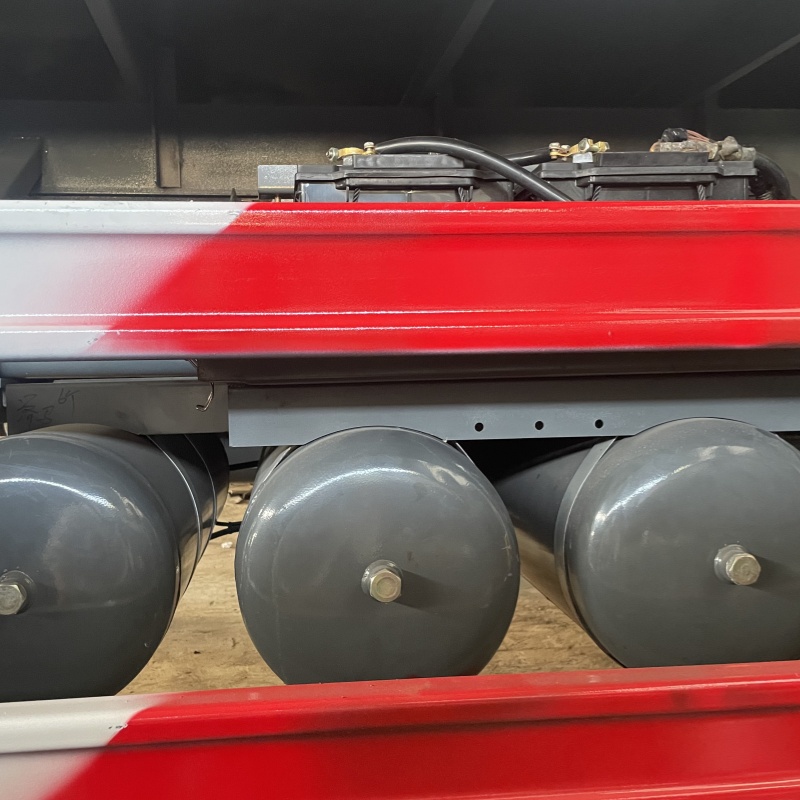

Brake system | Service brake | Dual circuit compressed air brake | ||
Parking brake | spring energy, compressed air operating on rear wheels | |||
Auxiliary brake | Engine exhaust brake | |||
Steering system | Model | ZF8118 hydraulic steering with power assistance | ||
Front axle | HF9 | |||
Rear axle | HC16 | |||

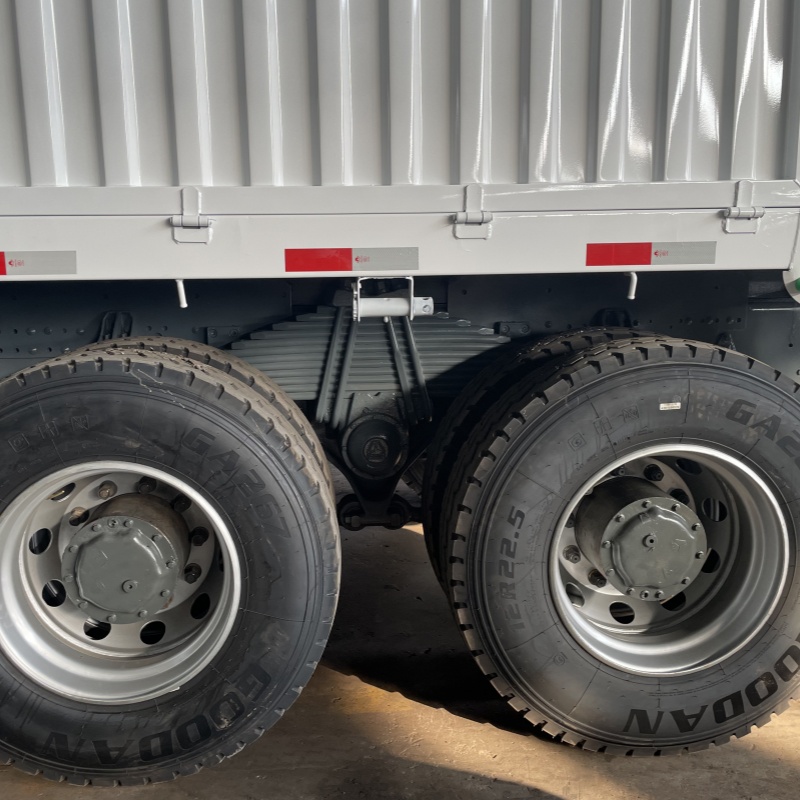

Tyre | 12.002 | |||
Electrical system | Battery | 2X12V/165Ah | ||
Alternator | 28V-1500kw | |||
Starter | 7.5Kw/24V | |||

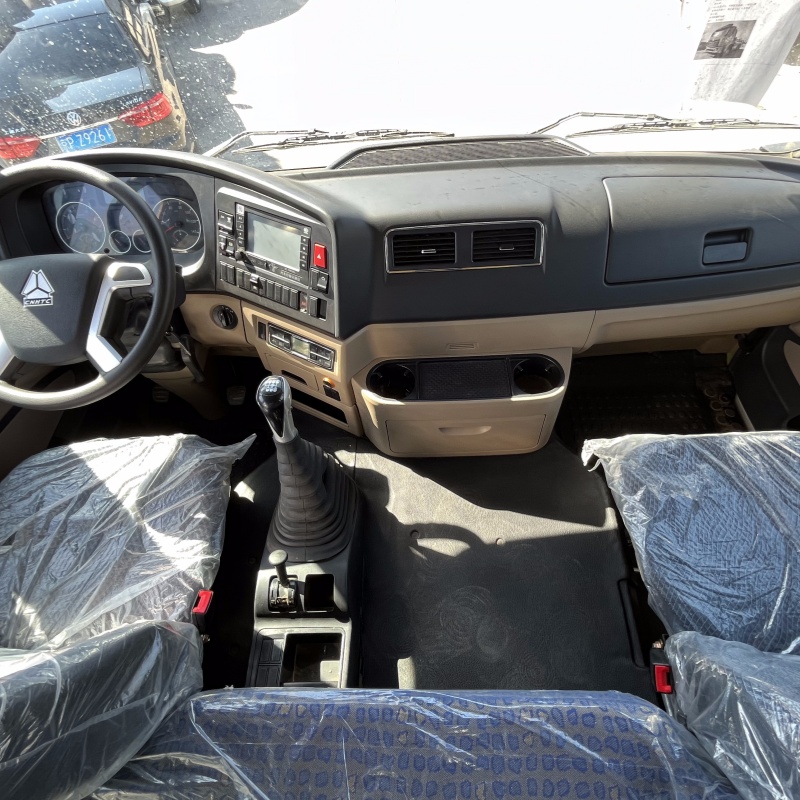

Cab | HW76cabin, one sleeper, with air conditioner | |||

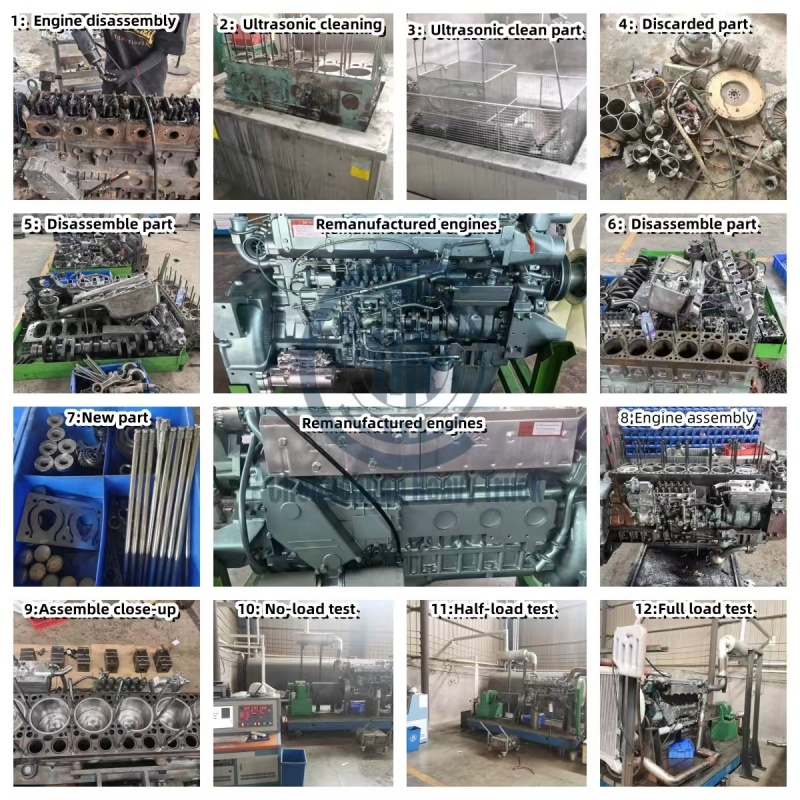

Our remanufactured engines undergo load testing to ensure top performance, reaching over 95% of a new engine.The engine will no longer have oil leakage problems, and it is more powerful and durable
Company profile

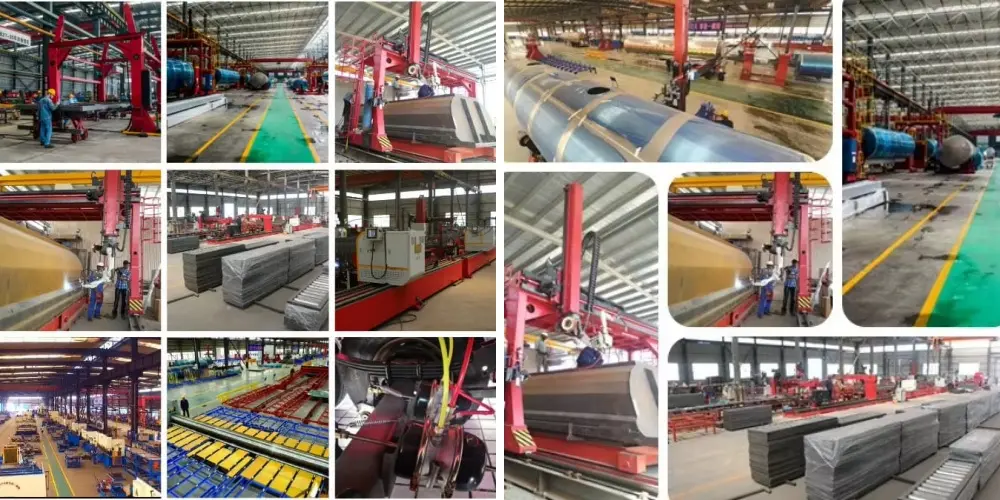

Shandong Camel Truck Co., Ltd. is located in Liangshan, Shandong Province.China——the nation's largest used truck trading hub and specialized vehicle production base. Established in July 2019 and approved as a pilot enterprise for used vehicle exports by the Ministry of Commerce of China. Relying on the rich local industrial resources and policy support, we developed rapidly and has now become a benchmark enterprise in the field of domestic used truck refurbishing, sales and special vehicle manufacturing and sales, enjoying an excellent market reputation.

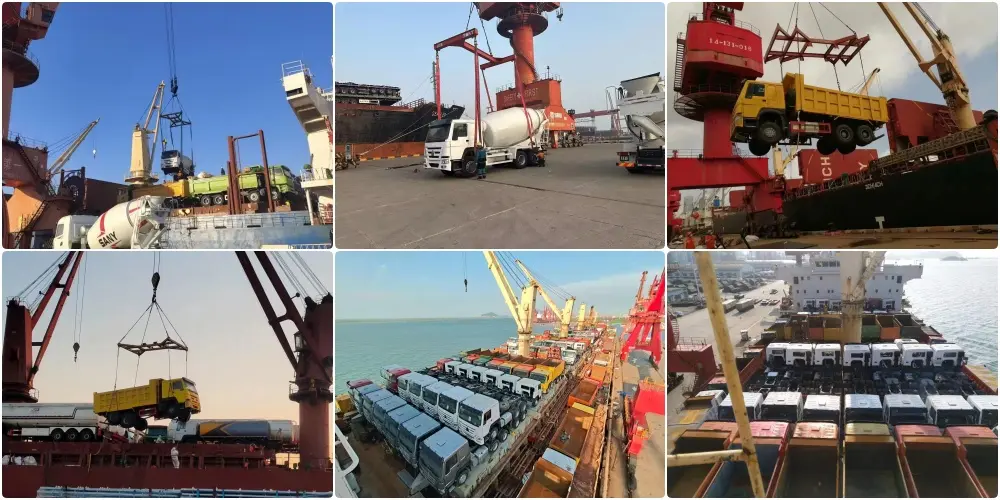

Packing and delivery
Camel Truck has extensive shipping experience working with world-renowned shipping companies and freight forwarders to deliver products
safely and promptly to the port of destination.
FAQ
Our Story:
Founded in 2019 in China's Shandong province, we've grown into an international supplier serving key markets across Africa (30%), South Asia (20%), Southeast Asia (20%), the Middle East (20%), while maintaining a strong domestic presence (10%). Our compact team of 11-50 dedicated professionals ensures personalized service for every client.
Our Quality Promise:
Every vehicle undergoes our stringent two-stage quality control:
Pre-production approval samples
Comprehensive final inspection before shipping
This dual-check system guarantees the reliability of every truck we export.
Our Product Range:
• Certified used dump trucks
• Durable tractors
• High-performance HOWO dump trucks
• Quality new and used trailers
Why We Stand Out:
We've perfected the complete export process for used commercial vehicles:
Expert procurement and preparation
Thorough vehicle inspections
Hassle-free customs documentation
Efficient transportation solutions
Destination clearance assistance
Our comprehensive one-stop service eliminates the typical headaches of international vehicle procurement, saving you time and reducing risks.
Global Expertise ∙ Local Commitment ∙ End-to-End Solutions
