20000 Liters Fuel Tank Truck

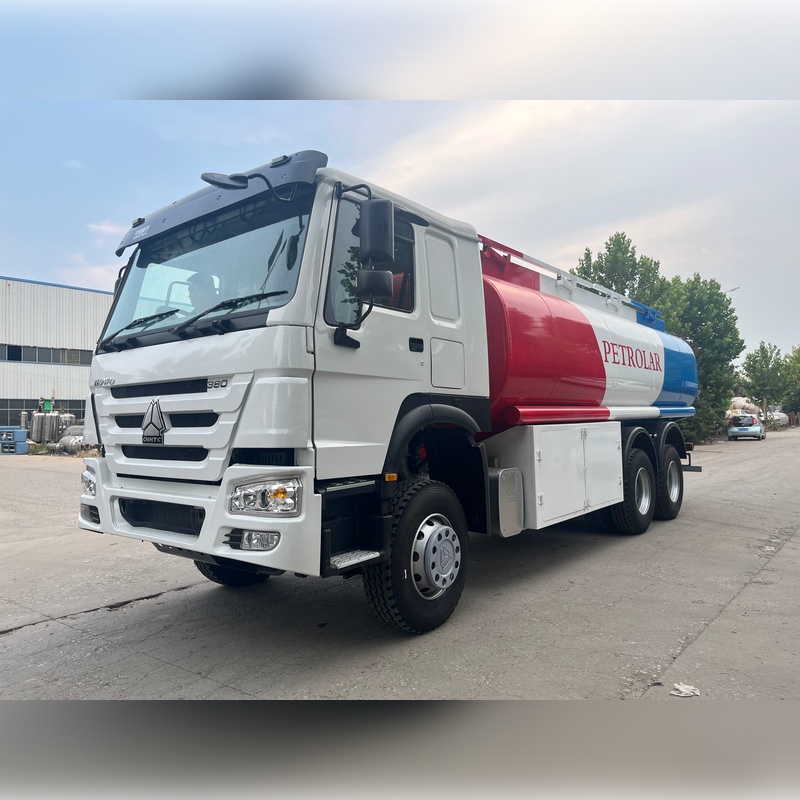

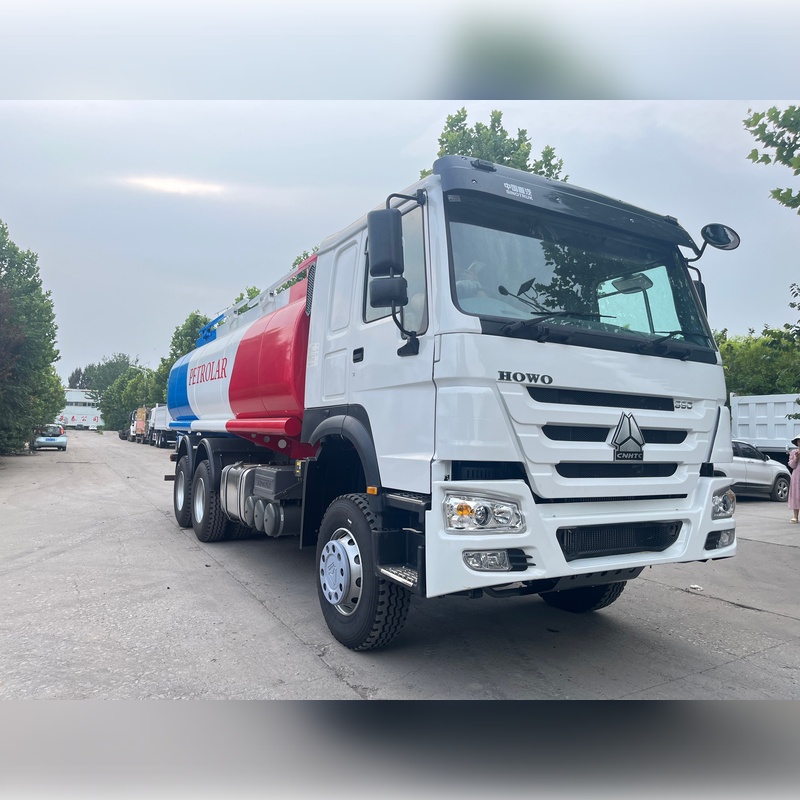

The HOWO 20,000-liter fuel tanker truck is a powerful and reliable solution for bulk fuel transportation. With a large 20,000-liter capacity, it ensures long-range operation and consistent performance. Built on a durable HOWO chassis, the truck delivers strength and stability for demanding workloads. Its 6×4 drive configuration provides excellent traction and maneuverability, making it well-suited for diverse road conditions and challenging terrains.
Truck Brand | SINOTRUK HOWO series |
Overall Dimension(LxWxH) | 9,900x2,500x3,300mm |
GVW/Curb Weight | 26,000/11,850kg |
Capacity of the Tank | 20,000Liters |
Compartment of the Tank | 3 compartments, inner with anti-surge baffles in the tank |
Drive Style | 6x4, LHD & RHD optional |
Cabin | HW76 cabin, white color, Day cabin, with radio, USB, A/C, 2 seats |
Wheelbase | 4,600+1,350mm |
Engine | SINOTRUK brand, WD615, 371hp Euro 2 standard |
Transmission | SINOTRUK brand, HW19710, 10F+2R, manual type |
Tires | 10+1spare, 11.00R20 |
F/R Axles | 7/13/13T |
Clutch | Single, dry clutch |
Electrical System | 24V |
Fuel tanker | Steel tank |
Shape of Tank | Oval tank |
Material of the Tank | High-quality mild steel |
Thickness of Tank | 4-5mm |
Fuel Dispenser Computer | China's best brand Censtar, with 15m flexible hose & reel & fuel gun; location can be before of tank, under of tank, and rear of the tank; dispenser fitted in a closed chest with 2pcs aluminum alloy rolling shutter door, LED light installed of the chest. |
Oil Pump | 1pc, 80-60, gear pump, 60m3/h, 960r/min, 14.2kw of shaft power, 0.6Mpa of working pressure, driven by hydraulic |
Flow Meter | 1pc, oval gear flow meter, 12~100m3/h of normal flow range, reading head with totalizer |
API System | Oil vapor recovery system, anti-overflow probe, electrostatic wire reel, cut-off valve, unloading valve |
PTO | 1pc, high-quality side-power driven PTO |
Manhole | 1~2, CSCTRUCK standard |
Emergency Valve | Pneumatically controlled emergency valve |
Discharging Valves | 2pcs., high-quality ball valves |
Toolbox | 1pc, CSCTTUCK standard |
Sucking System | 6.5m of sucking dept., <6m of sucking time, 2pcs of sucking oil hoses |
Cat Walkway | Antiskid plate type, installed on top of the tank |
Handrail | Used to rise & drop type, fixed on top of the tank |
Carries of Hoses | 2pcs., installed on each side of the tank |
Fire Extinguisher | 2pcs., installed at the rear of the truck |
Painting | Shot blasting pre-treated, sandblasting processing of the tank, anti-corrosion treatment of the internal of the tank, and advanced polyurethane painting on the surface of the tank. |
