Uesd Pump Truck
S-class pumping system: large displacement, high pressure, forced mixing, smooth pipeline, specializing in machine-made sand and gravel
High intelligence: a truly digital pump truck, with highly integrated chassis and upper body data, real-time data push APP, all kinds of operation data are under control
High safety: 360° all-round horizontal and safe material laying, flexible and safe construction
More flexible: the end boom can be reversed 180°, the order of retraction and extension is simple, and the single retraction and extension time is 5 minutes faster than similar products.

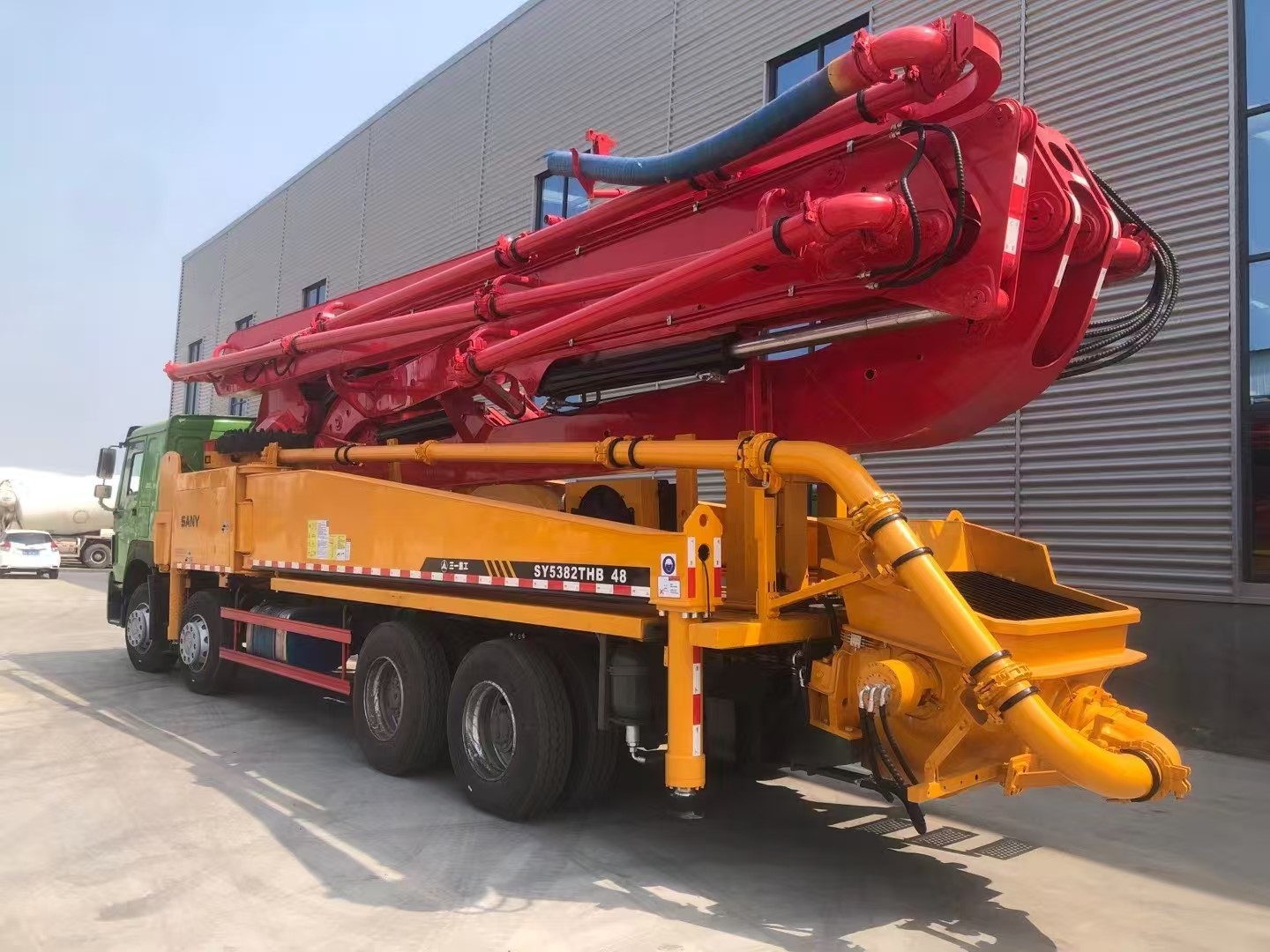

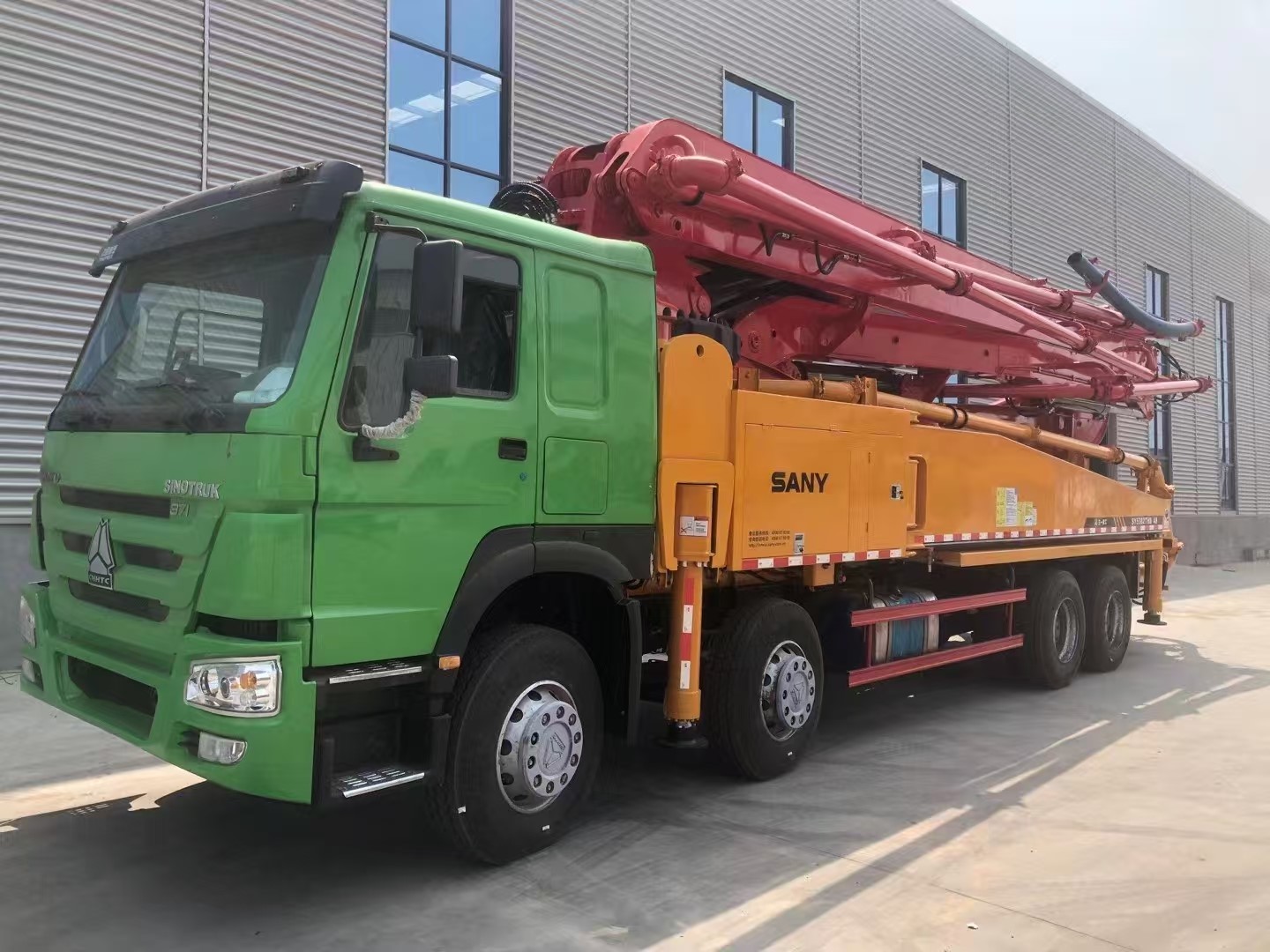

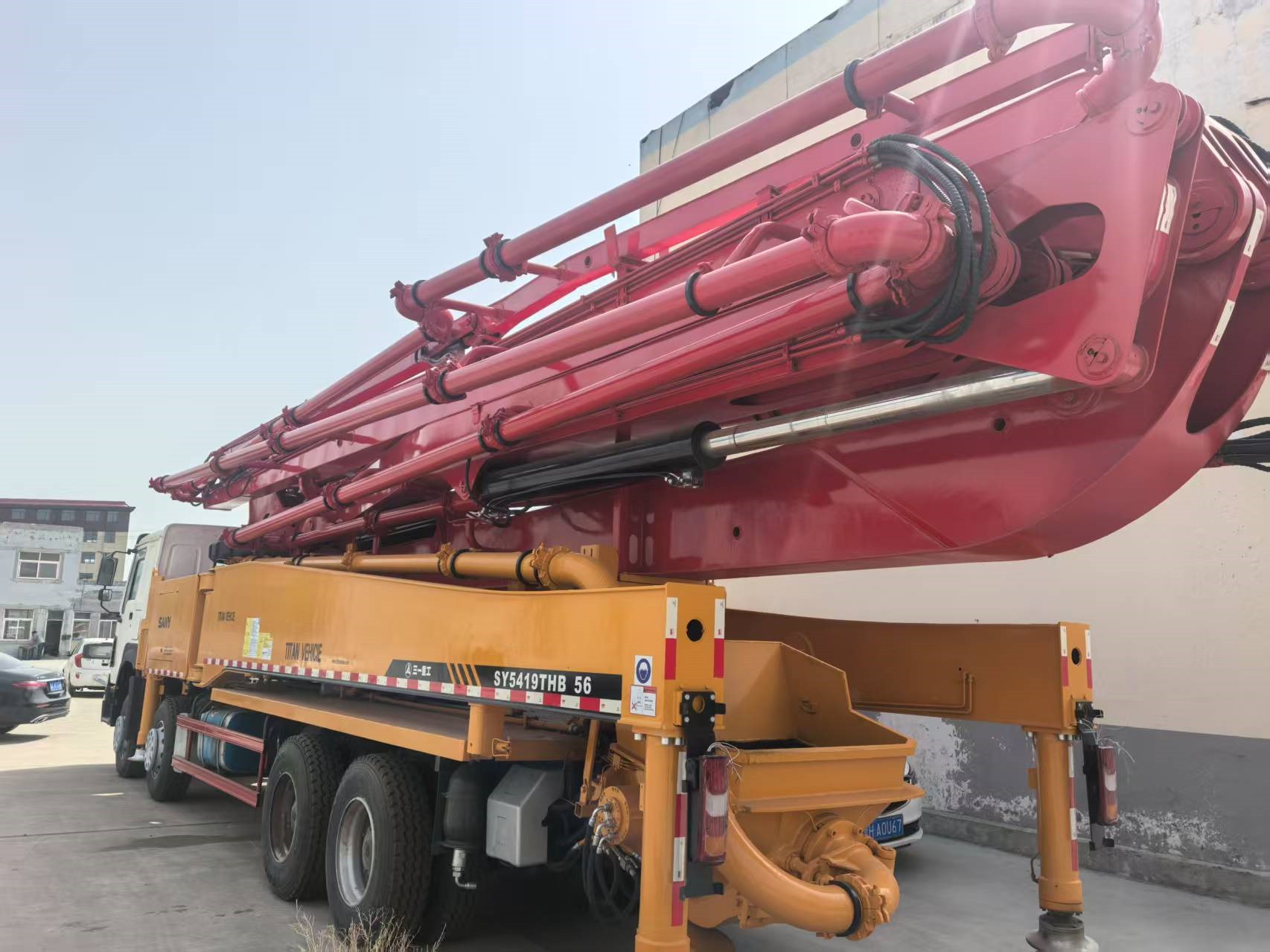

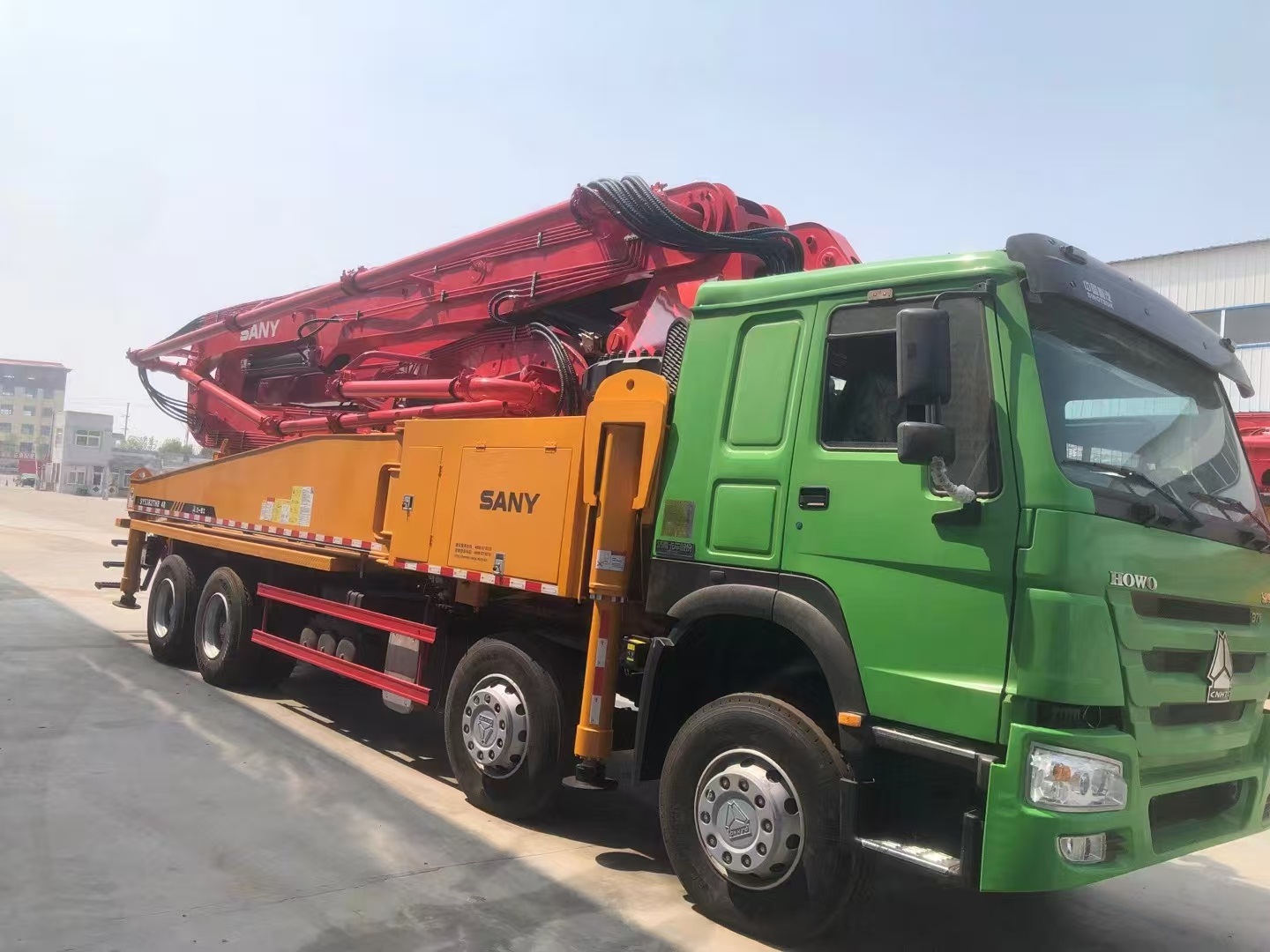

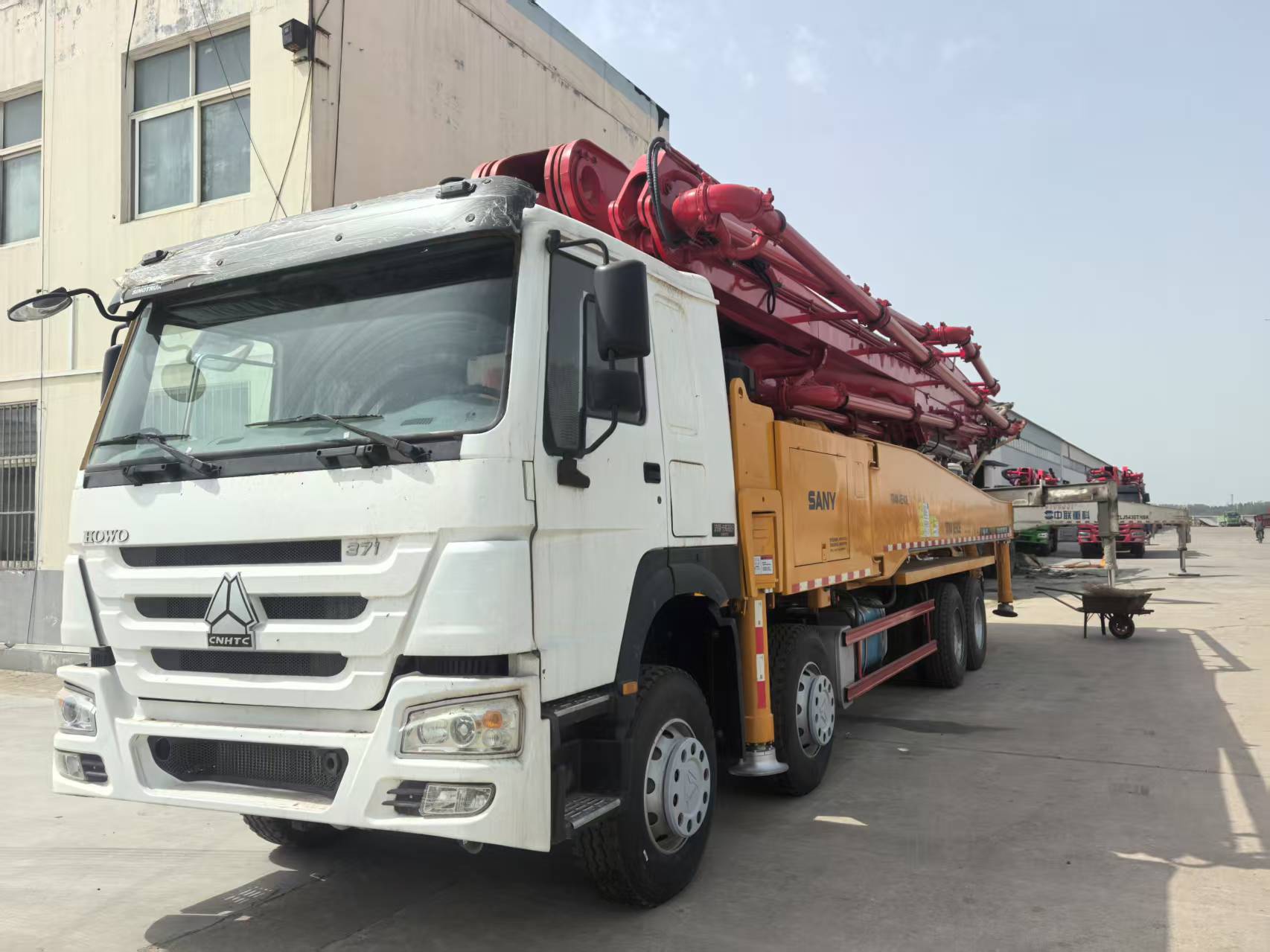

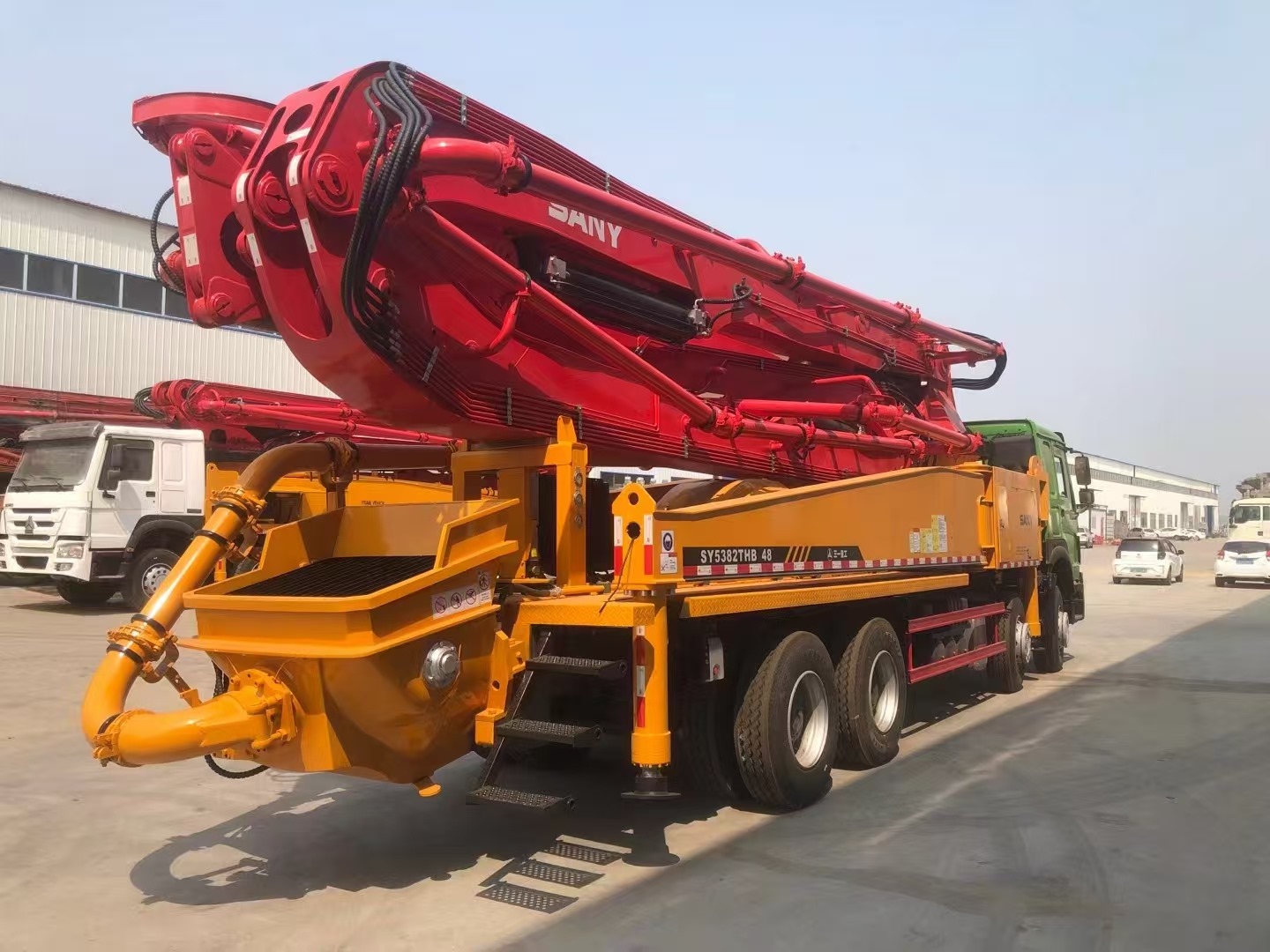

HOWO Heavy-Duty Concrete Pump Truck (46–56m Boom Range)
The HOWO truck-mounted concrete pump, available with 46 to 56-meter boom options, is built for high-efficiency concrete delivery in large-scale construction. The 35-meter boom model features an automatic height limit system to avoid collisions with overhead obstacles, ensuring safer operation.
Equipped with high-wear-resistant components—such as the delivery pipe, discharge port, transition bushing, concrete piston, wear plate, cutting ring, and delivery cylinder—the system ensures stable performance, improves pump efficiency, and reduces operational downtime.
Technical Parameters
SINOTRUK HOWO 8x4 Pump Truck LHD/RHD | |
Engine emission standard | EURO II |
Overall dimensions(L´W´H) | 14360mm×2530mm×4000mm |
Displacement/Rated power(L/kw) | 10677/320 |
Steering type | Steering wheel |
Axle numbers | 4 |
Wheelbase(mm) | 2300+4050+1350 |
Steel spring number (front/rear) | 4/4/4 |
Track (front /rear)(mm) | 2140/1804 |
Gearbox | HW19710 |
Max. overall mass(kg) | 44000 |
Max. overall mass front axle(kg) | 18000 |
Max overall mass middle/rear axle(kg) | 26000 |
Permitted number in the driver cab | 2 |
Front/rear overhang(mm) | 1500/3320 |
Front/rear extension of boom(mm) | 0/1840 |
Max. driving speed(km/h) | 90 |
Min. ground clearance(mm) | 312 |
Max. vertical conveying distance(m) | 60M |
Max. horizontal conveying distance(m) | 46/48/50/52/56 |

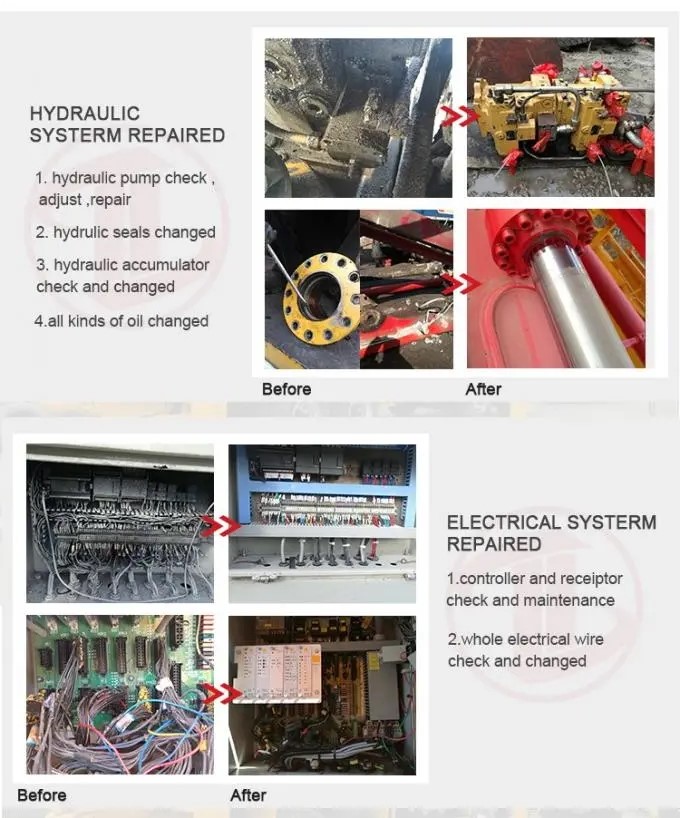

Maintenance Service

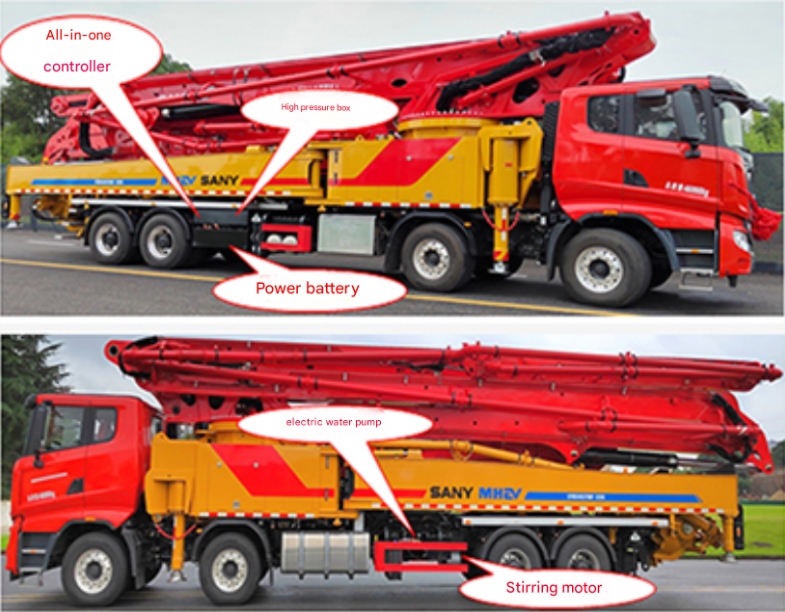

Overall layout

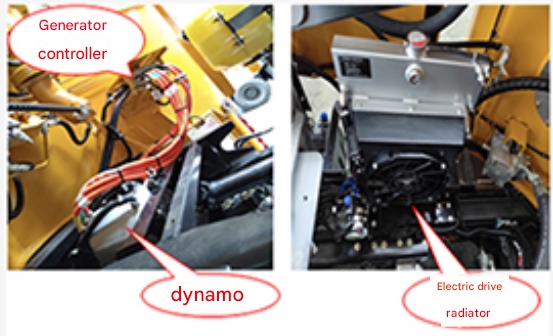

The micro-hybrid adds the following electrified components:
Power battery (including high-voltage box)
All-in-one controller, generator controller
Generator, stirring motor
Electric water pump
Electric drive radiator
Intelligent assisted driving

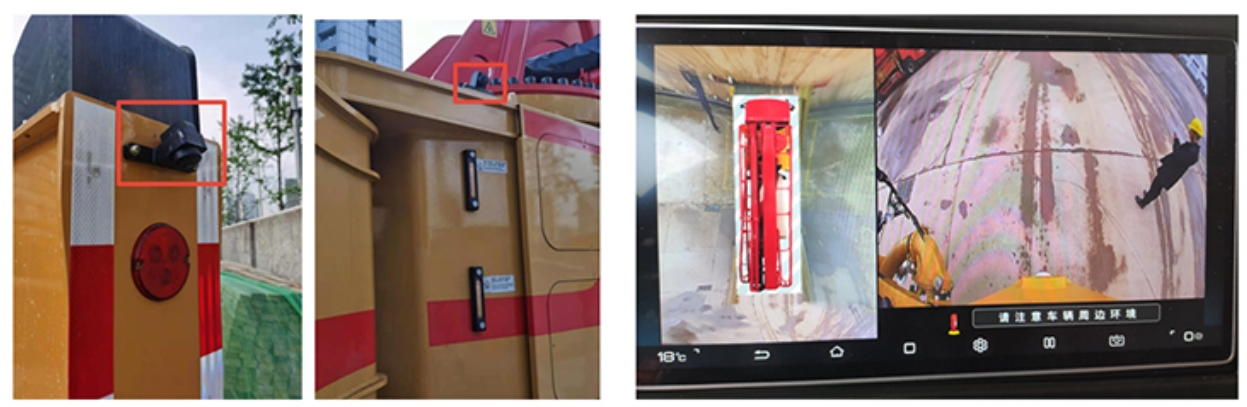

Voice control, AutoNavi navigation, 360 driving monitoring, seven-way radar
